$62.99
- Vibrant RGB Lighting: This 18.9″ x 9.5″ LED backlighting sheet offers customizable RGB colors, perfect for creating eye-catching displays for signs, trade show booths, and more.
- Flexible & Durable Design: Made with high-quality materials, this LED sheet is flexible and easy to install, ensuring long-lasting performance in various applications.
- 24V Low Voltage Operation: Designed for safety and efficiency, this LED sheet operates at 24V, making it suitable for both indoor and low-power applications.
- IP20 Rating: With an IP20 rating, this lighting sheet is protected against solid objects, making it ideal for indoor use in controlled environments.
- Fast Shipping & Secure Payment: Enjoy hassle-free shopping with secure payment options and fast, reliable shipping to get your product delivered quickly.
- No Compromise on Quality
- Where quality meets convenience.
- Free Shipping, No Compromise on Quality
- Your questions, our prompt answers.

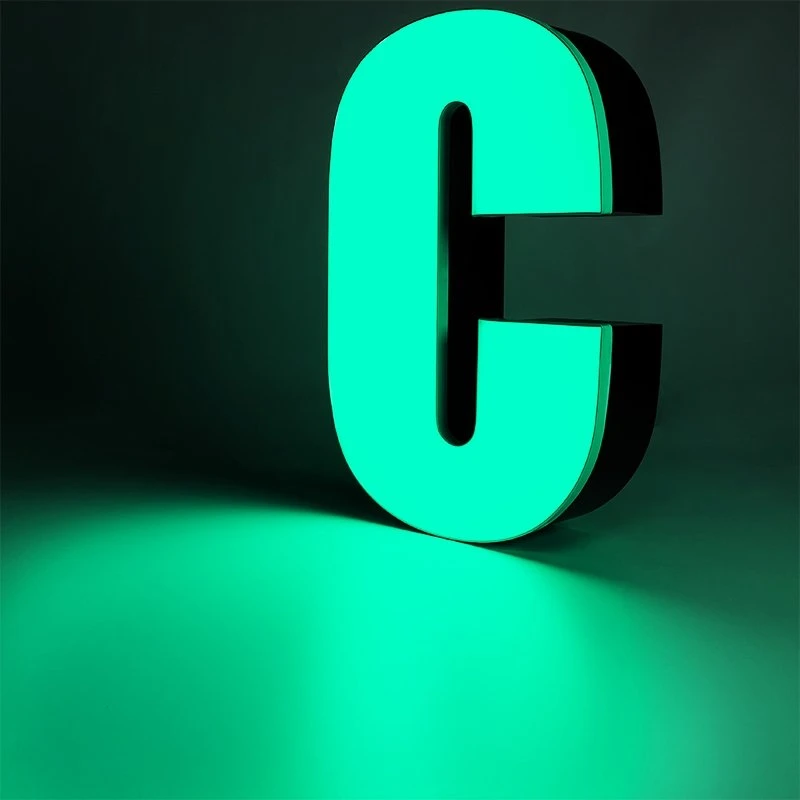

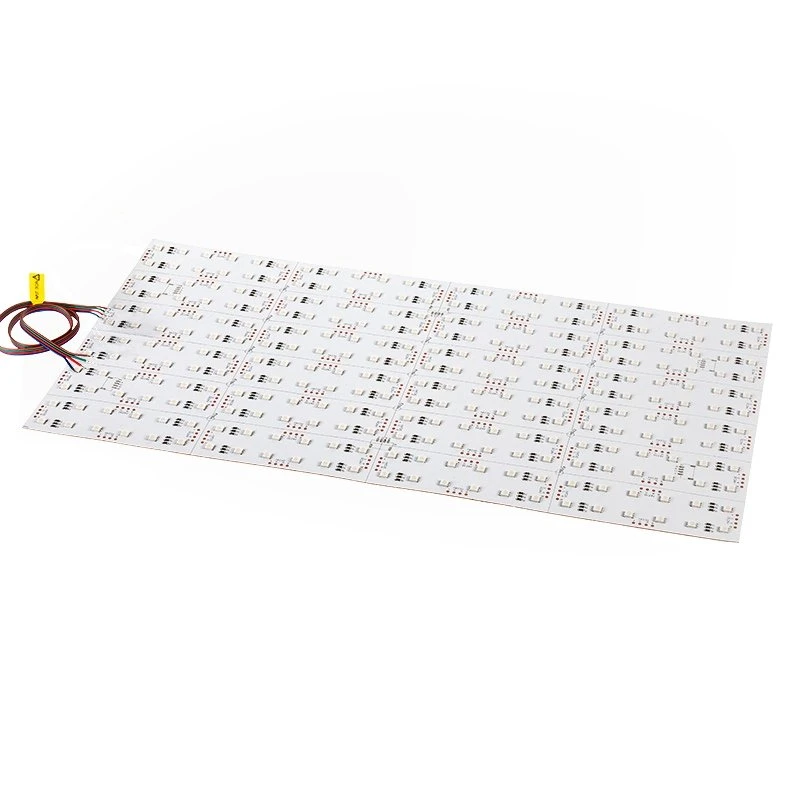

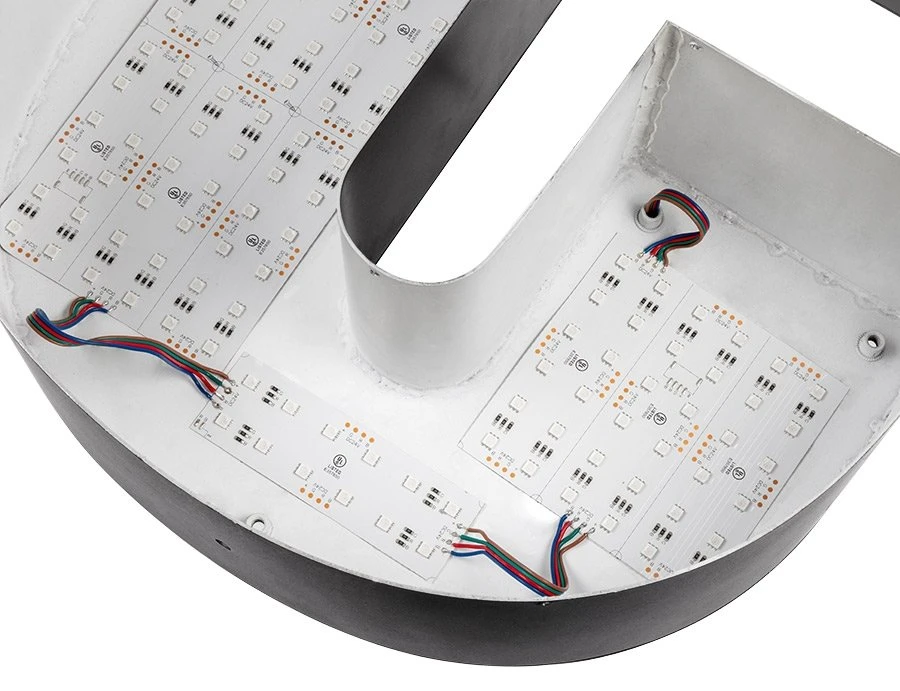

The LLS RGB series is a fully customizable and color-changing flexible LED sheet. This sheet is perfect for backlighting displays, light boxes, letters, logos, billboards, translucent materials, and more. The high density of LEDs, 288 LEDs per sheet, provides smooth, bright illumination free of hotspots. Easily link together multiple sheets or pieces using the onboard soldering connectors.

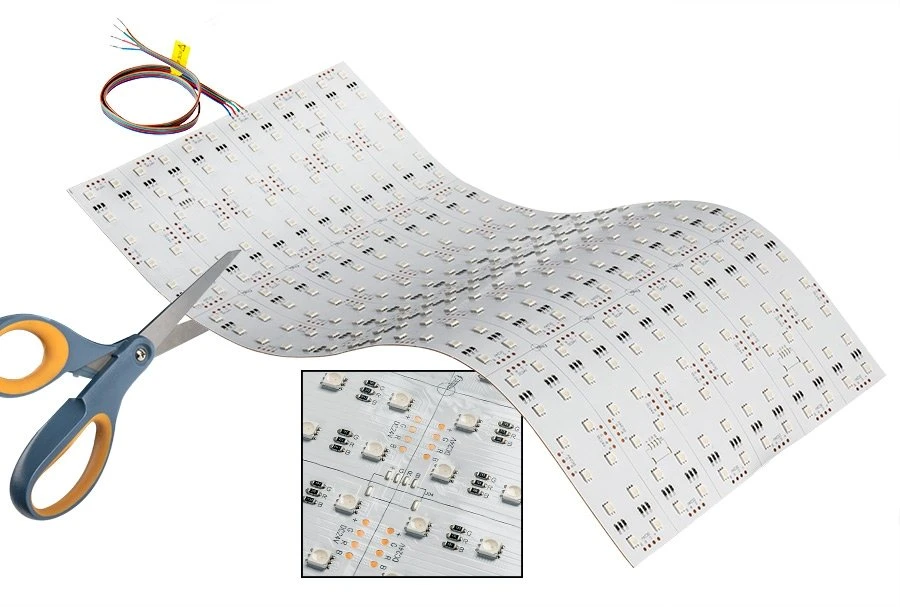

Please refer to the specification sheet for cutting recommendations. Using only the pre-marked lines when cutting the sheet is essential to maintaining electrical contact.
Product Details:
- Cuttable segments: every 4-3/4″ x 1-1/2″
- 12 LEDs per segment
- 4 x RGB solder points per segment
- Dimmable
- Max Run with Class 2 wiring: 1.5 sheets
- Dimensions: 18.9″ x 9.5″
- Thickness: 0.08in (2mm)
- Wire length: 19.5″ 22 AWG power wire
- IP20 rated for dry conditions
- 50000 hours L70 lifespan
- 24 VDC
- UL Listed, CE certified
- 5-year warranty
| Ambient Operating Temperature | -20~+45 °C (-4~+113 °F) |
|---|---|
| LED Beam Angle | 120° |
| Rated Life (L70) | 50000 Hours |
| Power Consumption | 60 Watts |
| Operating Voltage | 24 VDC |
| Max Run (Class 2) | 1.5 Sheets |
| LEDs per Segment | 12 |
| LED Type | 2835 SMD |
| IP Rating | IP20 |
| Certifications/Compliance | CE, UL Listed |
| Input Connection Type | Pigtail |
| Finish | White |
| Enclosed Fixture Rated | Yes |
| Dimmable | Yes |

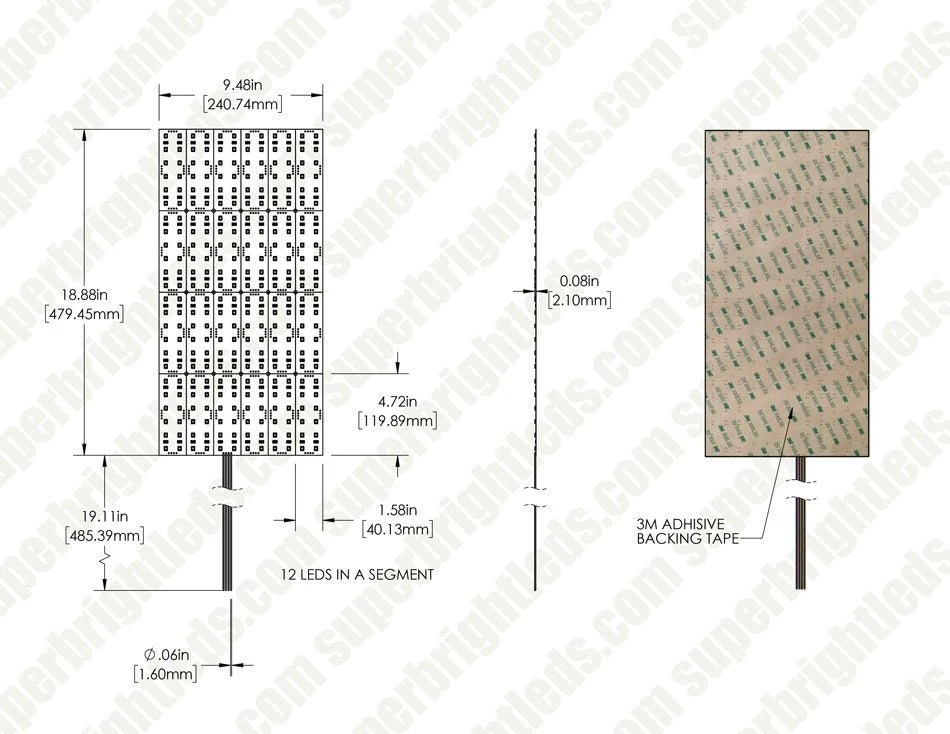

| Dimensions | 18.9in x 9.5in |
| Current Draw | 2.5 A |
| Color/CCT | RGB |
| Segment Size | 4.72 in. x 1.58 in. (120 mm x 40 mm) |
