$55.99
- Versatile Tunable White LED Light Sheet: Adjustable color temperature from 2700K (warm white) to 6500K (cool white) for customizable lighting solutions.
- Compact and Flexible Design: Measuring 18.9” x 9.5”, this LED light sheet is perfect for tight spaces and creative lighting applications.
- 24V Low Voltage Operation: Safe and energy-efficient, ideal for both indoor and outdoor use in sign lighting, trade show booths, and more.
- Durable IP20 Rating: Designed for indoor use, this LED light sheet is protected against solid objects, ensuring long-lasting performance.
- Easy XH Pin Connection: Simplifies installation and ensures a secure connection for hassle-free setup in your lighting projects.
- No Compromise on Quality
- Where quality meets convenience.
- Free Shipping, No Compromise on Quality
- Your questions, our prompt answers.

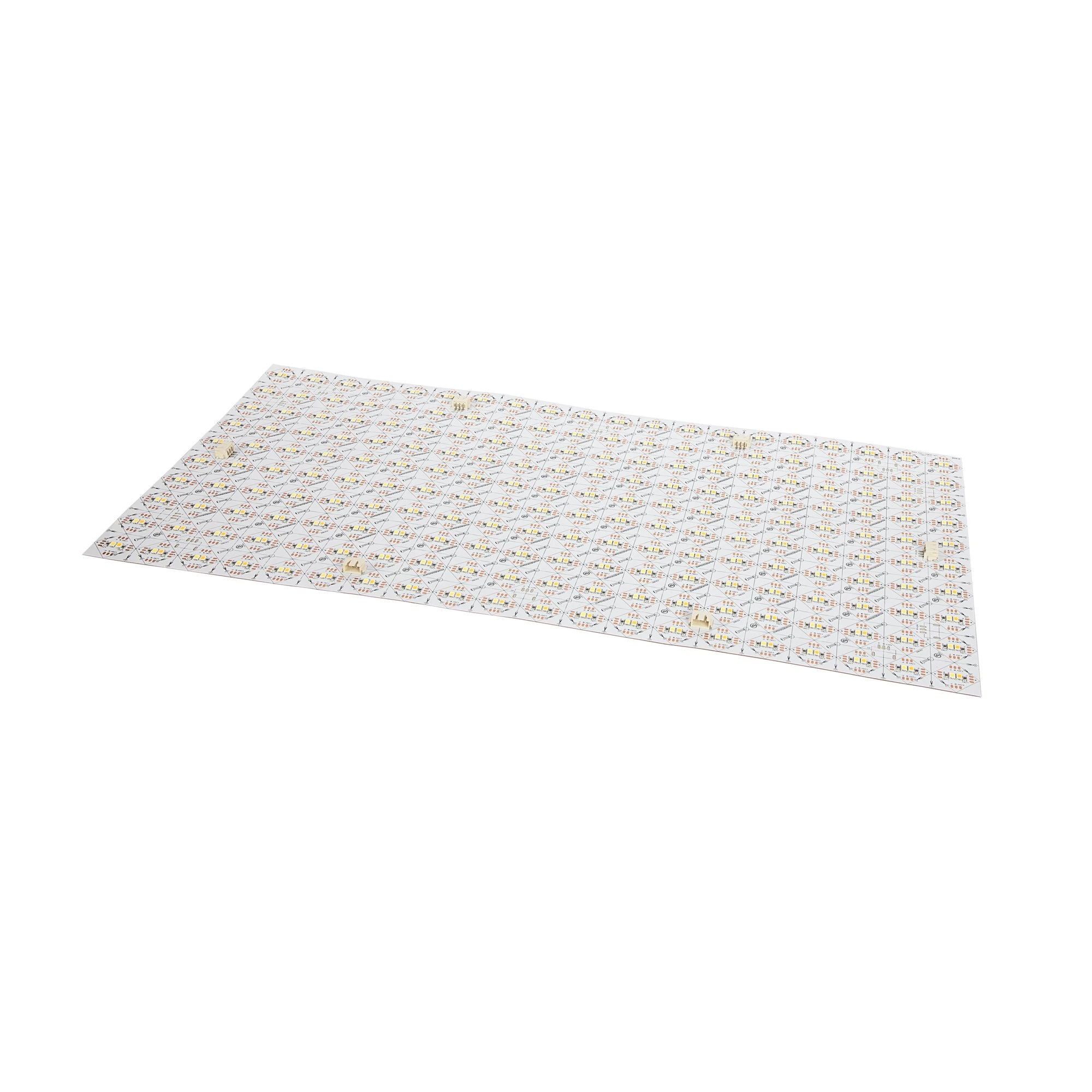

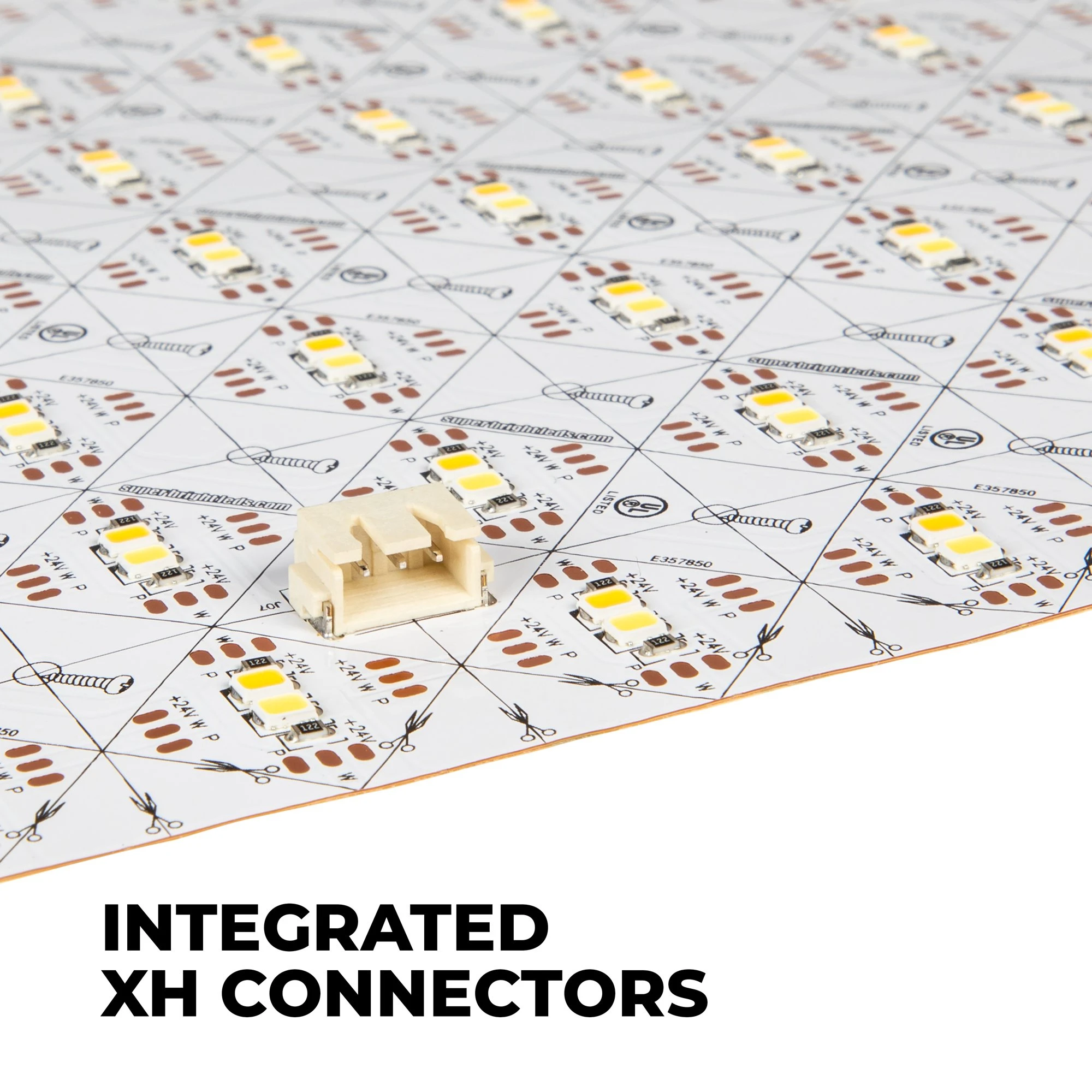

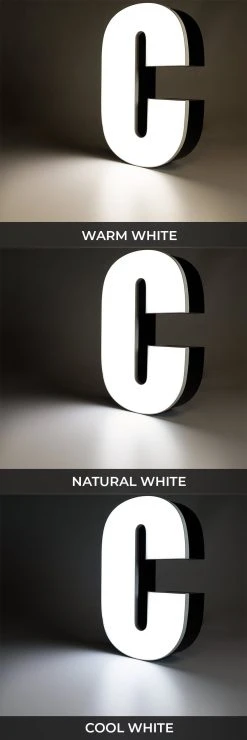

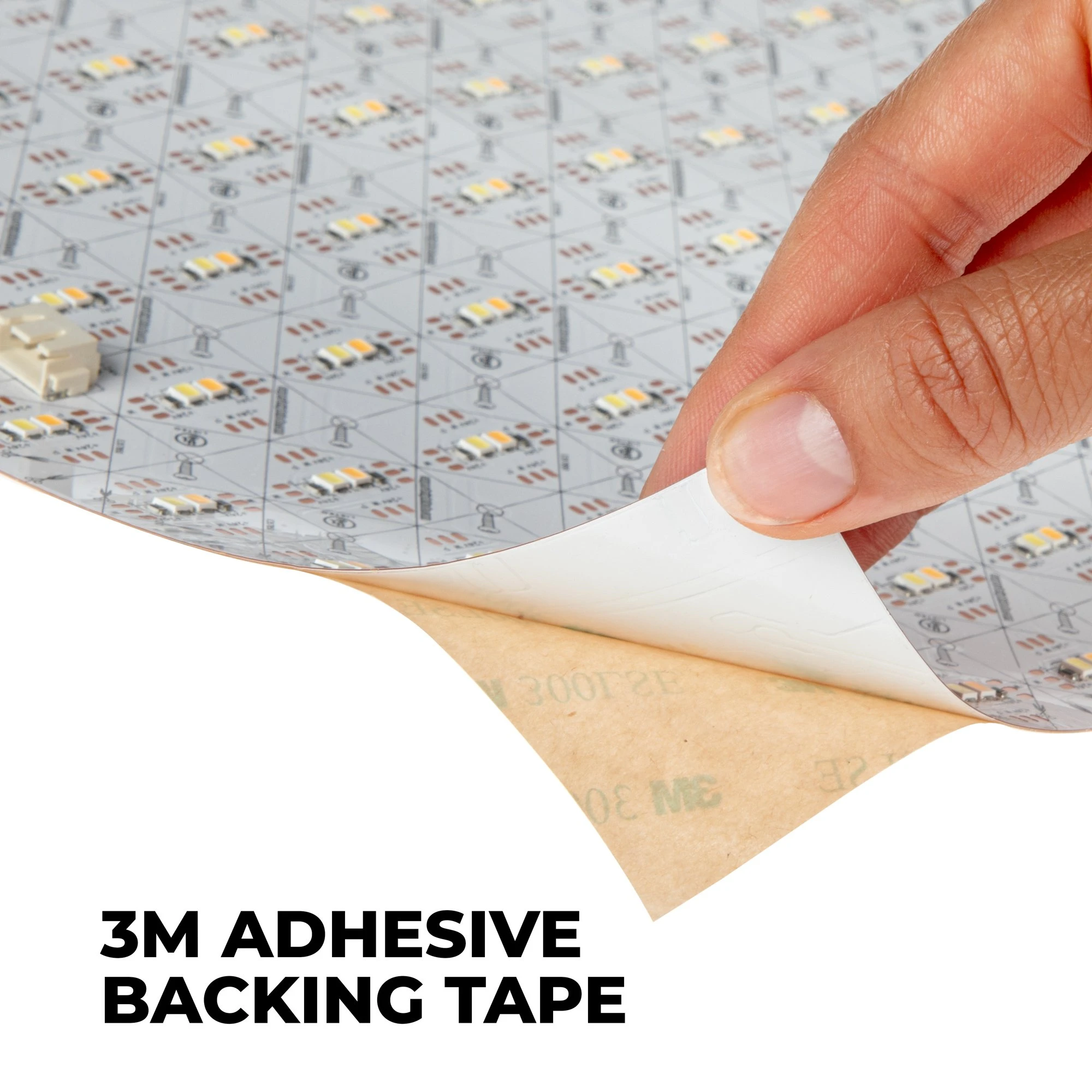

Wrap corners and trim to fit a unique shape with the Tunable White LED Light Sheet. The 18.9” x 9.5” sheet can be cut along the horizontal, vertical, or diagonal black lines of the 20 x 10 rows to customize the flexible sheet. Even in signs or backlighting with low clearance, the slim light sheet delivers powerful lighting, perfect for signage applications. On-board XH connectors eliminate soldering and simplify installation. To connect multiple light sheets, use the included interconnect cable. To install, use the 3M™ adhesive backing, or fasten it with screws at the indicated spots. The light sheet is tunable which and can display a range of 2700K-6500K.
Product Details:
- Segment size: 0.95″ x 0.95″- 200 segments per sheet
- Max Run with Class 2 wiring: 1.5 sheets
- Input connection: 3-pin XH connector
- Includes one 0.5m pigtail connector and one 8cm interconnect
- PWM dimmable
- 24 VDC
- UL Listed
- 5-year warranty
| Ambient Operating Temperature | -20~+45 °C (-4~+113 °F) |
|---|---|
| IP Rating | IP20 |
| Rated Life (L70) | 50000 Hours |
| Power Consumption | 60 Watts |
| Output Connection Type | XH 3-Pin Connector |
| Operating Voltage | 24 VDC |
| Max Run (Class 2) | 1.5 Sheets |
| LEDs per Segment | 2 |
| LED Type | 2835 SMD |
| LED Beam Angle | 120° |
| Input Connection Type | XH 3-Pin Connector |
| CCT Value | 2700-6500K |
| Finish | White |
| Enclosed Fixture Rated | Yes |
| Efficacy | 88 lm/W |
| Dimmable | Yes |
| Dimensions | 18.9in x 9.5in |
| Current Draw | 2.5 A |
| Color/CCT | Tunable CCT |
| CRI | 80+ |
| Certifications/Compliance | UL Listed |
| Segment Size | 0.95 n. x 0.95 in. (24 mm x 24 mm) |
