$45.49

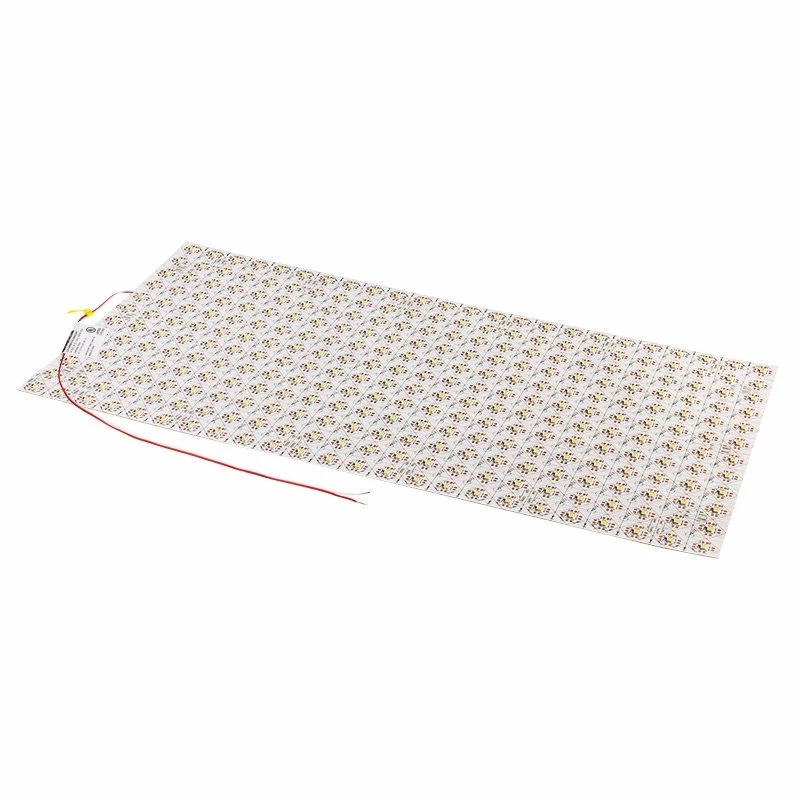

- Versatile 24V LED Light Sheet: This flexible LED light sheet measures 18.9″ x 9.5″ and is available in white with an IP20 rating. Choose from a range of color temperatures (2700K, 3000K, 3500K, 4000K, 5000K, 6500K) to suit your lighting needs.

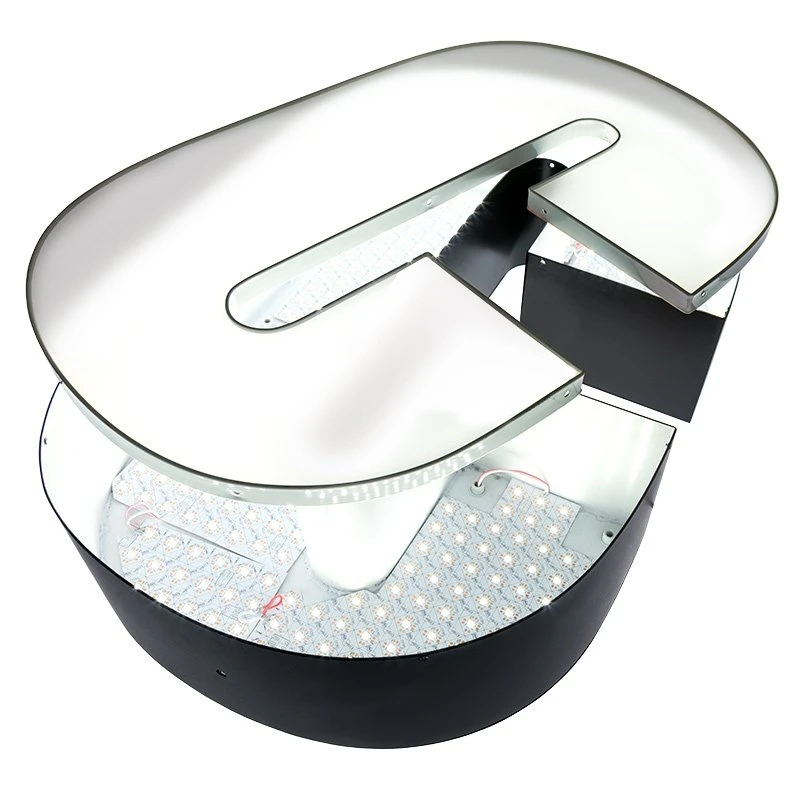

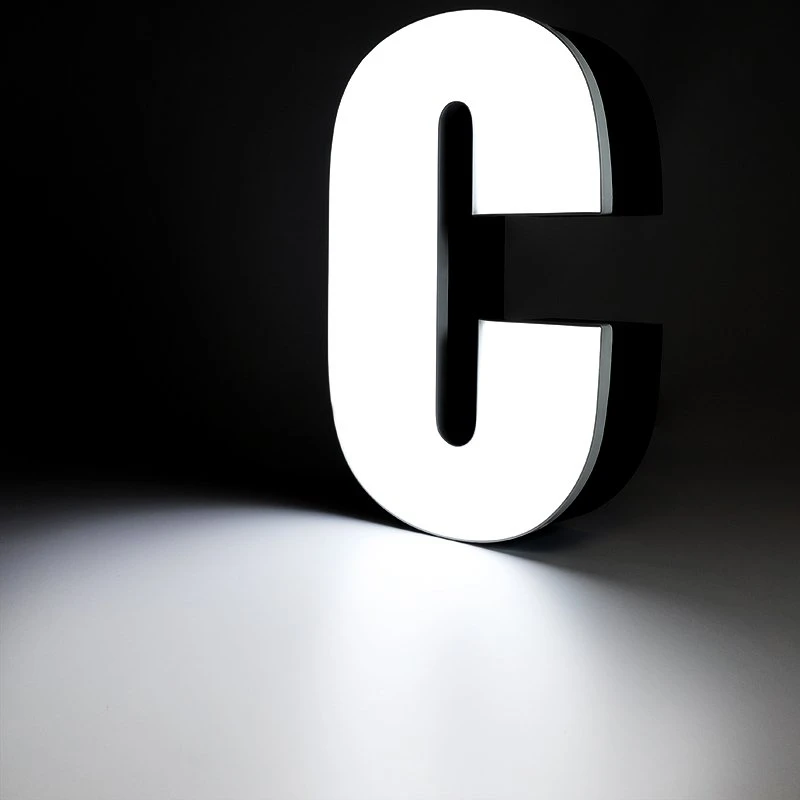

- High-Quality Lighting Solution: Designed for durability and efficiency, this LED light sheet is perfect for a variety of applications, including sign lighting, trade show booths, and more. Its flexibility allows for easy installation on curved or flat surfaces.
- Easy Installation and Customization: The 24V LED light sheet is easy to install and can be cut to size for custom applications. Its low voltage operation ensures safety and energy efficiency, making it ideal for both indoor and outdoor use.

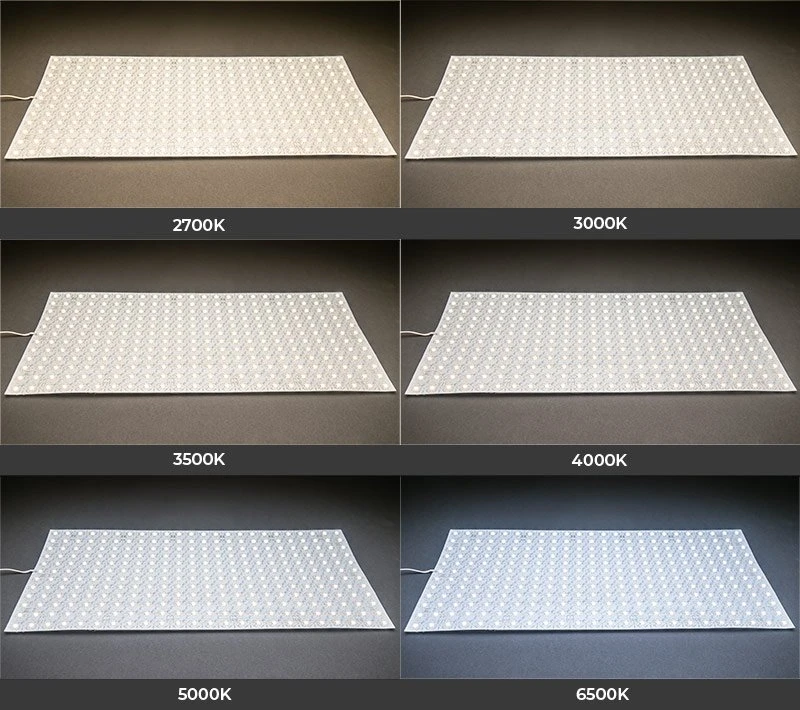

- Multiple Color Temperature Options: With color temperatures ranging from warm white (2700K) to cool white (6500K), this LED light sheet offers versatility for different lighting environments. Create the perfect ambiance for your space with ease.
- Fast Shipping and Secure Payment: We offer fast and reliable shipping options to ensure your LED light sheet arrives on time. Enjoy secure payment methods and excellent customer service. Contact us for any inquiries or support.
- No Compromise on Quality
- Where quality meets convenience.
- Free Shipping, No Compromise on Quality
- Your questions, our prompt answers.

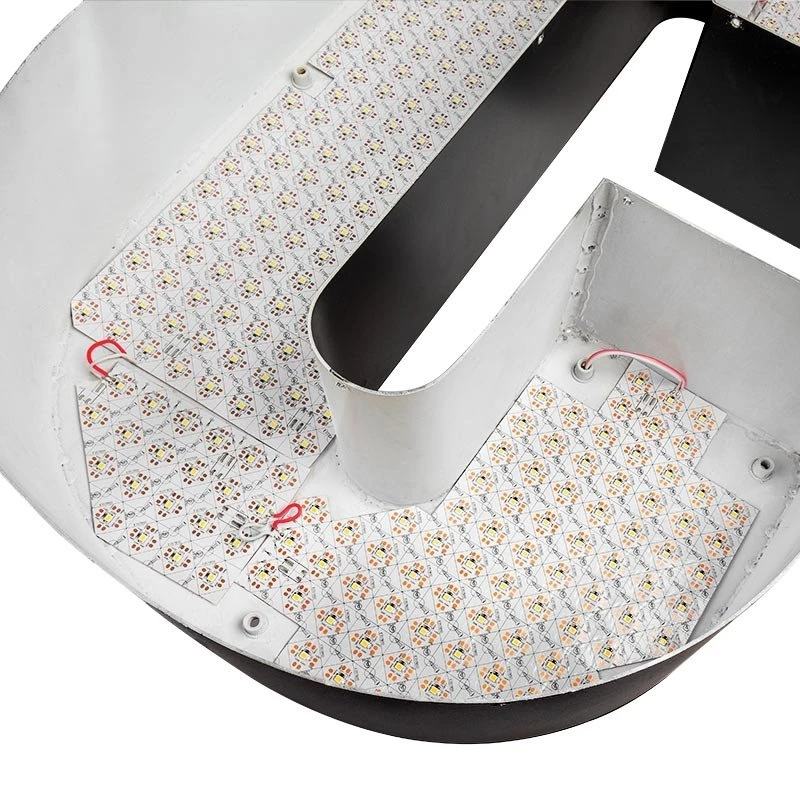

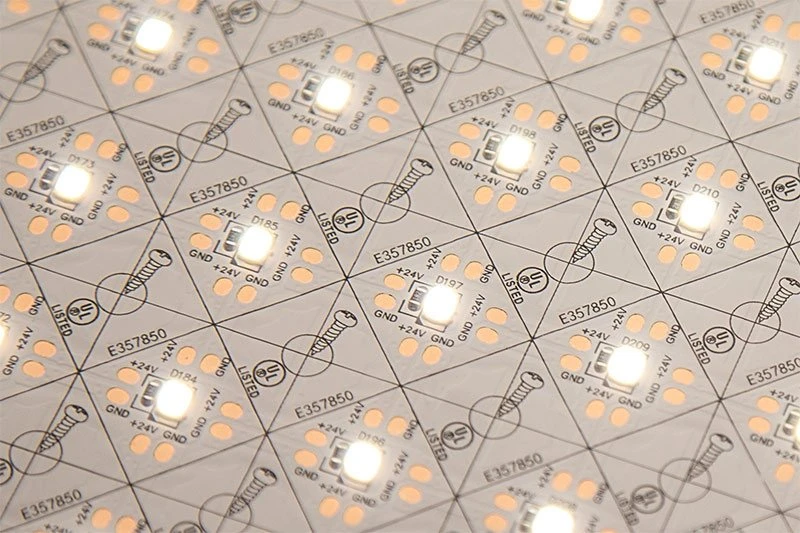

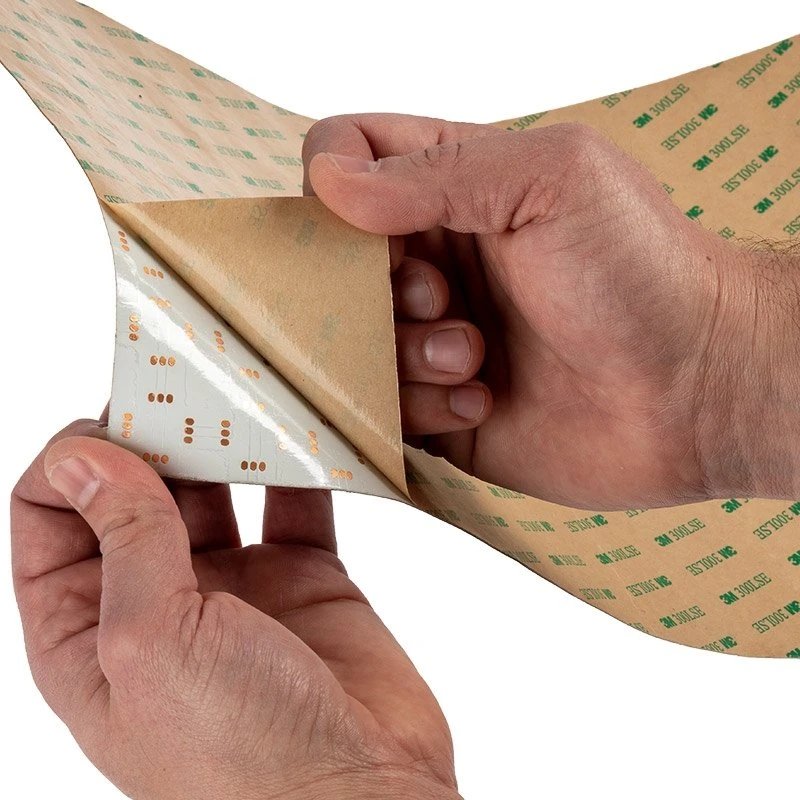

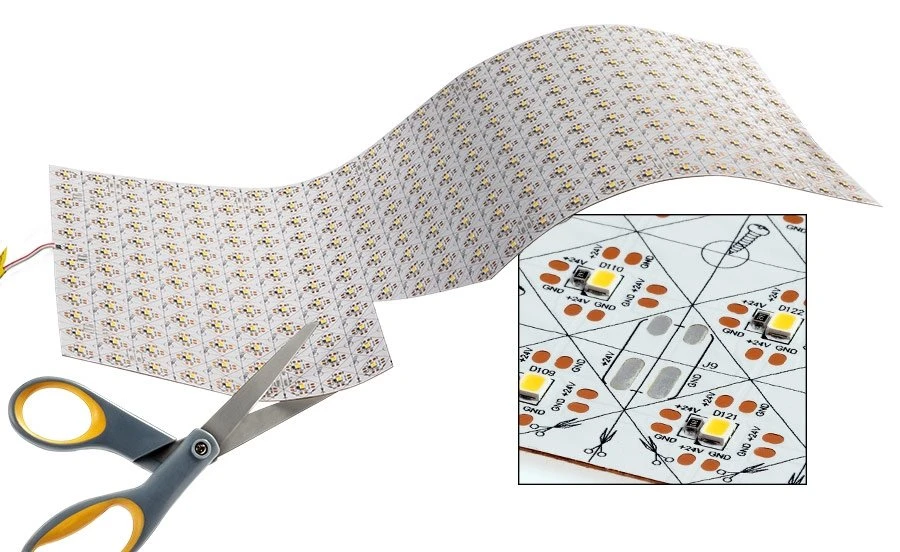

Trim to fit a unique shape and wrap corners with LLS series LED Light Sheet. This flexible sheet contains 24 x 12 rows that can be segmented in any shape simply by cutting along the horizontal, vertical, or diagonal black lines. A high density of LED chips ensures even light distribution, even in signs or backlighting with low clearance. Apply this dimmable sheet by peeling off the 3M™ adhesive backing or fastening it with screws at the indicated spots.
Please refer to the specification sheet for cutting recommendations. Using only the pre-marked lines when cutting the sheet is essential to maintaining electrical contact.
Product Details:
- Dimmable
- Max Run with Class 2 wiring: 3 sheets

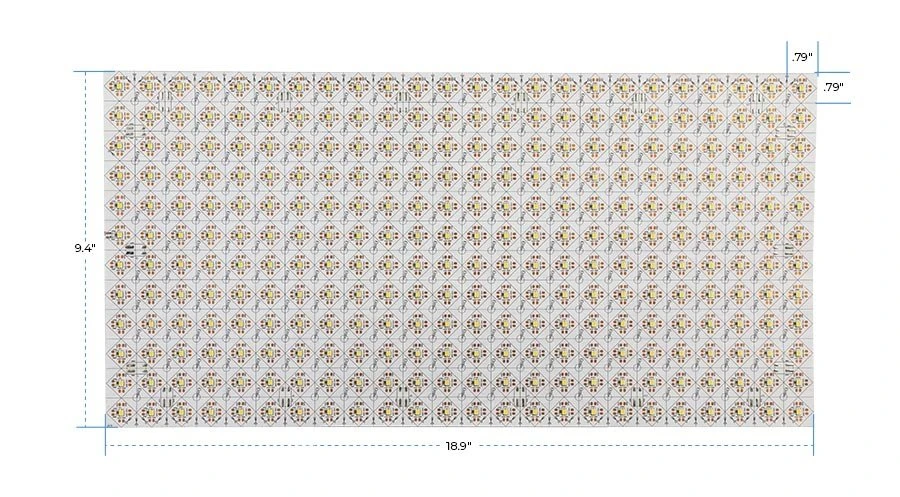

- Dimensions: 18.9″ x 9.45″
- Enclosed fixture rated 30 mm
- IP20 rated for dry conditions
- 50000 hours L70 lifespan
- 24 VDC
- UL Listed
- 5-year warranty
| Color Options | Cool 6500K, Cool 5000K, Natural 4000K, Warm 3500K, Warm 3000K, Warm 2700K |
|---|---|
| Input Connection Type | Pigtail |
| Rated Life (L70) | 50000 Hours |
| Power Consumption | 30 Watts |
| Operating Voltage | 24 VDC |
| Max Run (Class 2) | 3 Sheets |
| LEDs per Segment | 1 |
| LED Type | 2835 SMD |
| LED Beam Angle | 120° |
| IP Rating | IP20 |
| Finish | White |
| Ambient Operating Temperature | -20~+45 °C (-4~+113 °F) |
| Environmental Rating | Non-weatherproof |
| Enclosed Fixture Rated | Yes |
| Efficacy | 92 lm/W |
| Dimmable | Yes |
| Dimensions | 18.9in x 9.5in |
| Current Draw | 1.3 A |
| CRI | 80+ |
| Certifications/Compliance | CE, UL Listed |
| Segment Size | 0.79 in. x 0.79 in. (20 mm x 20 mm) |
