$90.99
- High-quality 24V Flexible LED Light Sheet in a 24″ x 12″ size, designed for versatile lighting applications. Available in white with an IP20 rating, ensuring durability and safety for indoor use.
- Choose from multiple color temperatures (2700K, 3000K, 3500K, 4000K, 5000K, 6500K) to suit your specific lighting needs, whether for warm ambiance or bright task lighting.

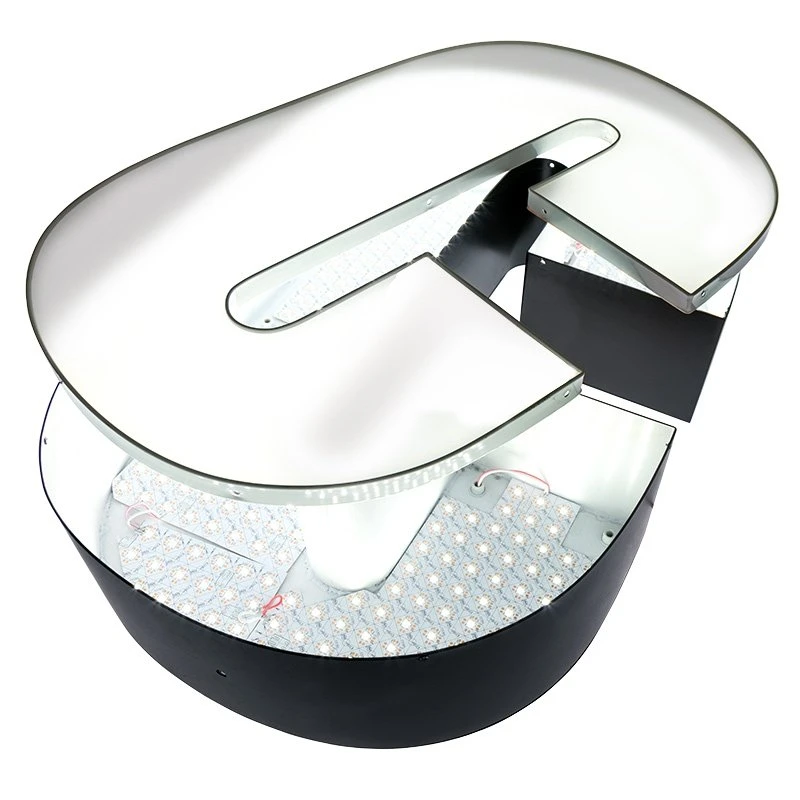

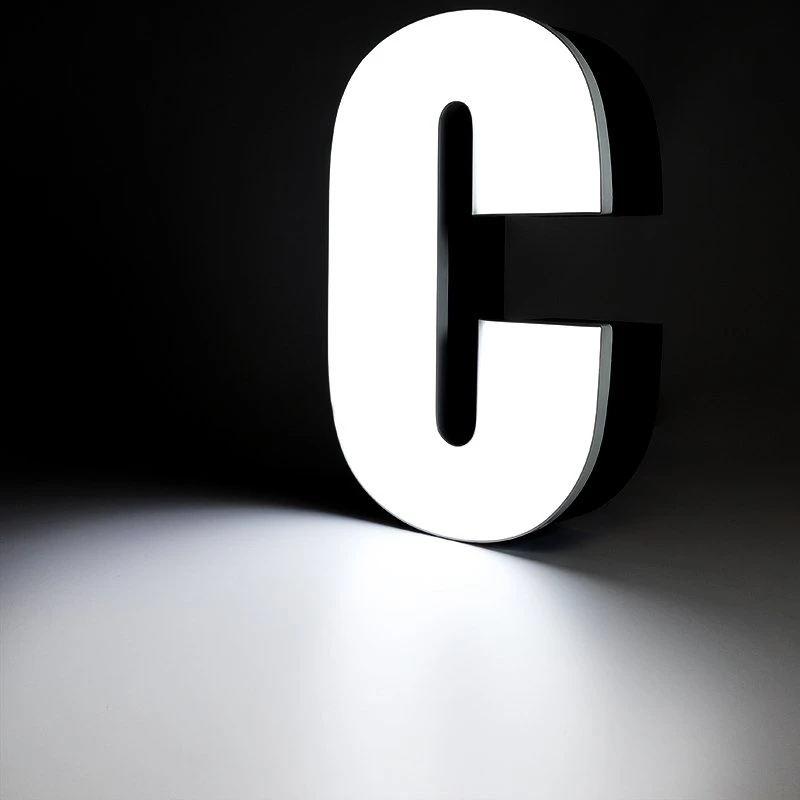

- Ideal for sign lighting, trade show booths, and other creative lighting projects. The flexible design allows for easy installation on curved or flat surfaces.
- Energy-efficient and long-lasting, these LED light sheets provide consistent brightness and are perfect for both commercial and residential applications.
- Fast and reliable shipping available. Secure payment options ensure a hassle-free shopping experience. Order now and transform your space with premium LED lighting!
- No Compromise on Quality
- Where quality meets convenience.
- Free Shipping, No Compromise on Quality
- Your questions, our prompt answers.

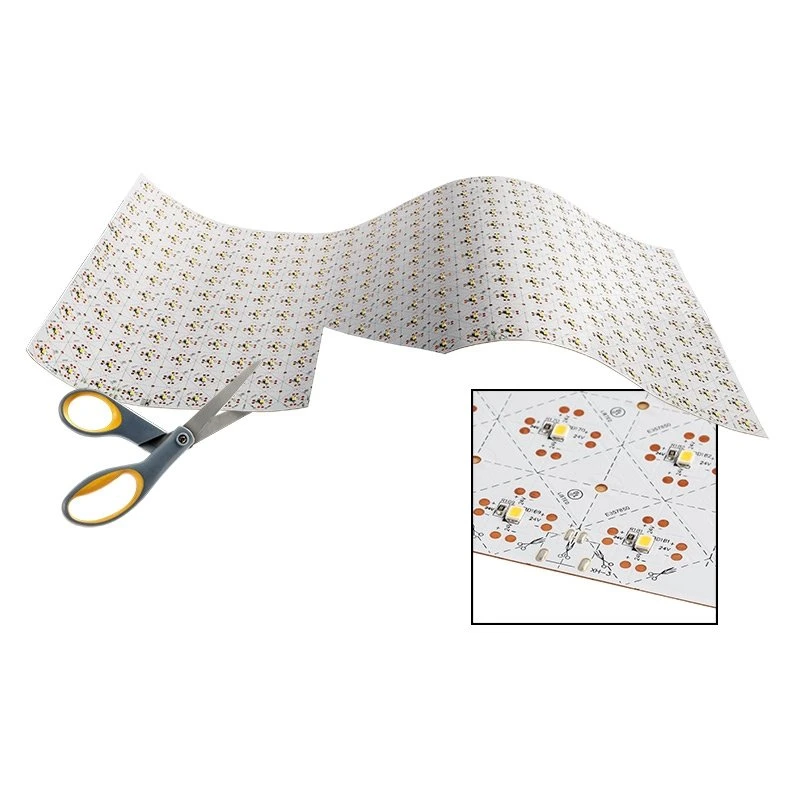

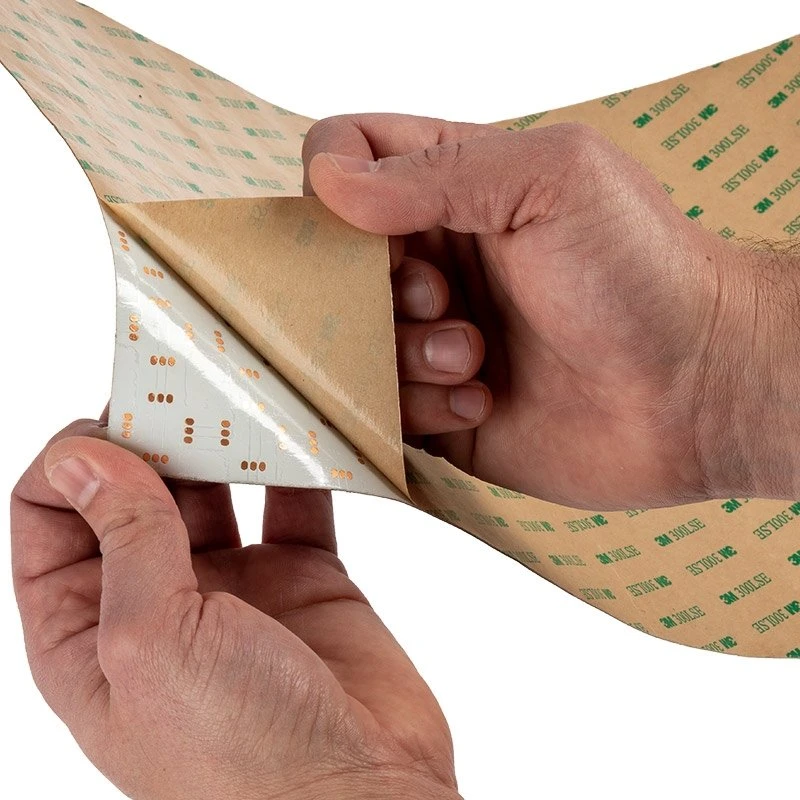

Trim the LED light sheet to fit unique shapes or wrap corners. This flexible sheet contains 24 columns x 12 rows that can be segmented in any shape by cutting along the horizontal, vertical, or diagonal lines. The 1-inch segments ensure even light distribution, ideal for signs or backlighting. Apply this dimmable sheet by peeling off the 3M™ adhesive backing or fastening it with screws at the indicated spots.
Please refer to the specification sheet for cutting recommendations. Using only the pre-marked lines when cutting the sheet is essential to maintaining electrical contact.
Product Details:
- Segment size: 1 in. (25.4 mm) x 1 in. (25.4 mm)
- Max run with Class 2 wiring: 3 full sheets
- Enclosed fixture rated 30 mm
- IP20 rated for dry conditions
- PWM dimmable
- 24 VDC
- UL Listed
- 5-year warranty
| Color Options | Cool 6500K, Cool 5000K, Natural 4000K, Warm 3500K, Warm 3000K, Warm 2700K |
|---|---|
| Input Connection Type | Pigtail |
| Rated Life (L70) | 50000 Hours |
| Power Consumption | 30 Watts |
| Operating Voltage | 24 VDC |
| Max Run (Class 2) | 3 Sheets |
| LEDs per Segment | 1 |
| LED Type | 2835 SMD |
| LED Beam Angle | 120° |
| IP Rating | IP20 |
| Finish | White |
| Ambient Operating Temperature | -20~+45 °C (-4~+113 °F) |
| Environmental Rating | Non-weatherproof, Suitable for Dry Locations |
| Enclosed Fixture Rated | Yes |
| Efficacy | 92 lm/W |
| Dimmable | Yes |

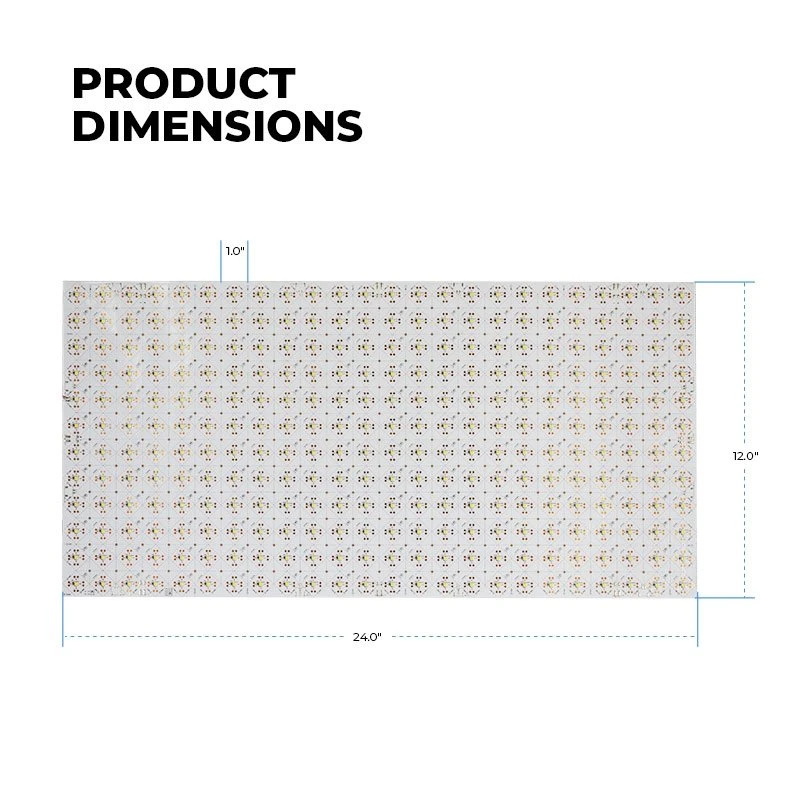

| Dimensions | 24in x 12in |
| Current Draw | 1.3 A |
| CRI | 80+ |
| Certifications/Compliance | CE, UL Listed |
| Segment Size | 1 in. x 1 in. (25.4 mm x 25.4 mm) |
