$73.49
- Brighten your displays with this Addressable RGB LED Light Sheet, measuring 18.9” x 9.5”. Perfect for custom signage, trade show booths, and creative lighting projects.
- Powered by 24V, this flexible LED light sheet offers vibrant RGB colors and addressable control, allowing for dynamic lighting effects and patterns.
- Designed with an IP20 rating, this LED sheet is ideal for indoor use. The XH Pin Connection ensures a secure and hassle-free setup.
- Enjoy fast and reliable shipping with multiple payment options available, including credit card, PayPal, and more. Delivery within 3-5 business days.
- Backed by a 1-year warranty, our customer support team is ready to assist with any questions or concerns. Transform your lighting projects today!
- No Compromise on Quality
- Where quality meets convenience.
- Free Shipping, No Compromise on Quality
- Your questions, our prompt answers.

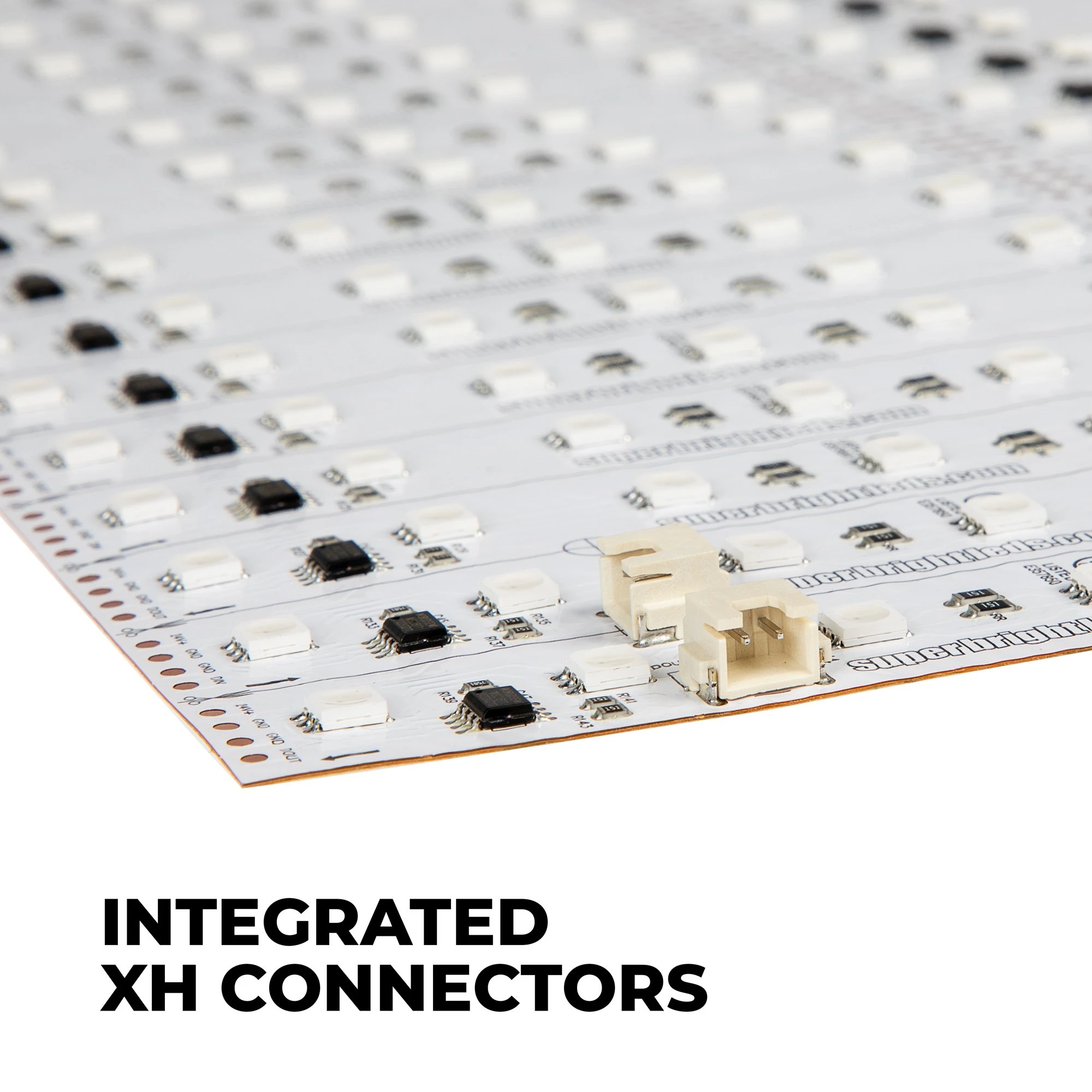

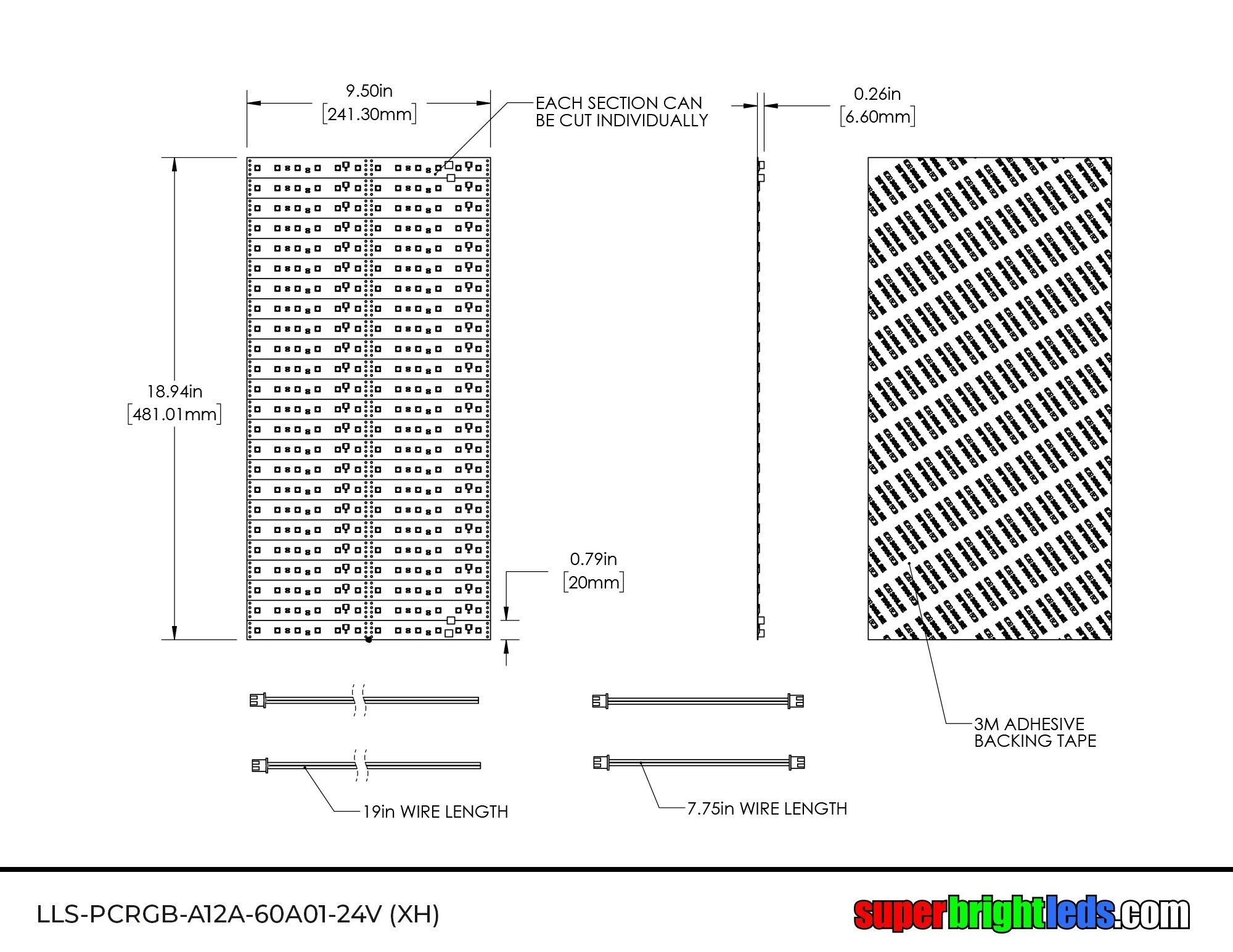

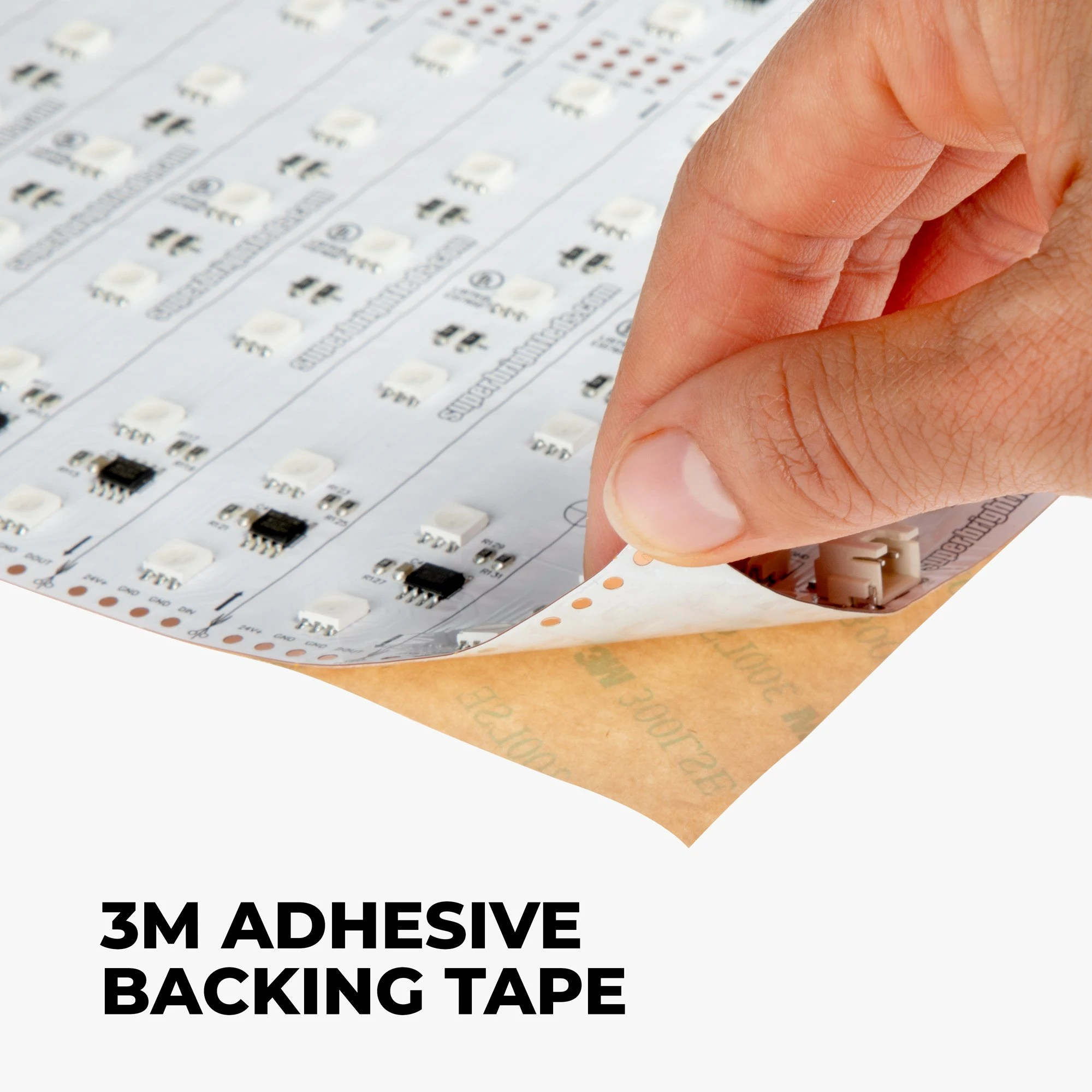

Wrap corners and trim to fit a unique shape with the Addressable RGB LED Light Sheet. The 18.9” x 9.5” sheet can be cut along the horizontal, vertical, or diagonal black lines of the rows to customize the flexible sheet. Even in signs or backlighting with low clearance, the slim light sheet delivers powerful lighting, perfect for signage applications. On-board XH connectors eliminate soldering and simplify installation. To connect multiple light sheets, use the included interconnect cable. To install, use the 3M™ adhesive backing, or fasten it with screws at the indicated spots. This light sheet has addressable RGB capabilities, allowing the individual LEDs to be customized using a controller (sold separately).
Product Details:
- Segment size: 4.72″ x 0.79″- 48 segments per sheet
- Max Run with Class 2 wiring: 1 sheet
- Input connection: 2-pin XH connectors
- PWM dimmable
- 24 VDC
- UL Listed
| Ambient Operating Temperature | -20~+45 °C (-4~+113 °F) |
|---|---|
| LED Beam Angle | 120° |
| Rated Life (L70) | 36000 Hours |
| Power Consumption | 60 Watts |
| Output Connection Type | XH 2-Pin Connector |
| Operating Voltage | 24 VDC |
| Max Run (Class 2) | 1.5 Sheets |
| LEDs per Segment | 6 |
| LED Type | 5050 SMD |
| IP Rating | IP20 |
| Certifications/Compliance | UL Listed |
| Input Connection Type | XH 2-Pin Connector |
| Finish | White |
| Enclosed Fixture Rated | Yes |
| Dimmable | Yes |
| Dimensions | 18.9in x 9.5in |
| Current Draw | 2.5 A |
| Color/CCT | Addressable RGB |
| Segment Size | 4.72 in. x 0.79 in. (120 mm x 20 mm) |
