$66.49
- Bright and Versatile: This RGB LED Light Sheet measures 18.9” x 9.5” and offers vibrant, customizable lighting for signs, trade show booths, and creative displays.
- Flexible Design: The thin, bendable LED sheet allows for easy installation on curved or flat surfaces, making it ideal for a variety of applications.
- 24V Power & IP20 Rating: Designed for low-voltage operation (24V) and rated IP20, this LED sheet is safe for indoor use and energy-efficient.
- XH Pin Connection: Equipped with an XH Pin Connection for quick and secure wiring, ensuring hassle-free setup and reliable performance.
- Fast Shipping & Secure Payment: Enjoy reliable logistics with fast delivery and secure payment options. Perfect for businesses and DIY enthusiasts alike.
- No Compromise on Quality
- Where quality meets convenience.
- Free Shipping, No Compromise on Quality
- Your questions, our prompt answers.

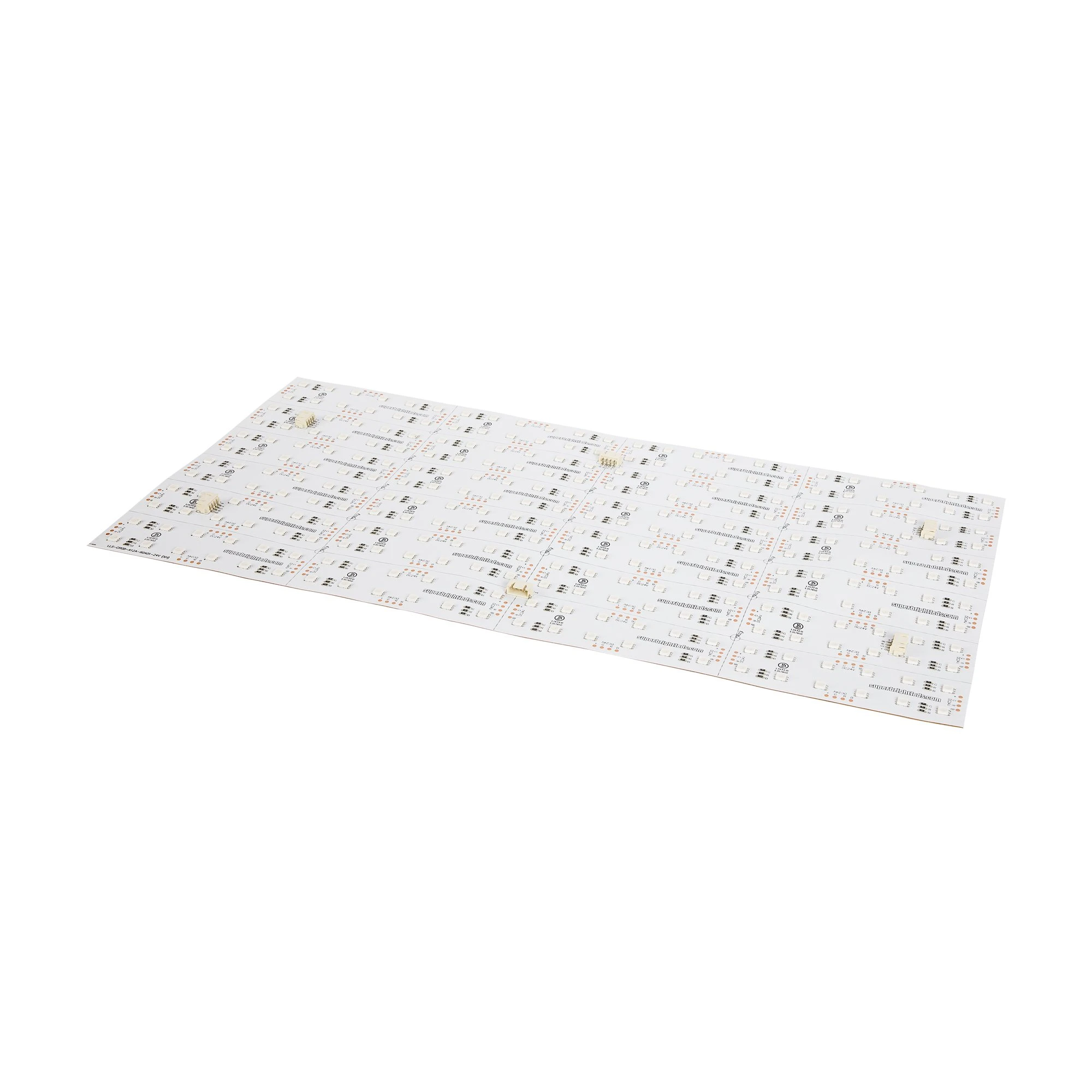

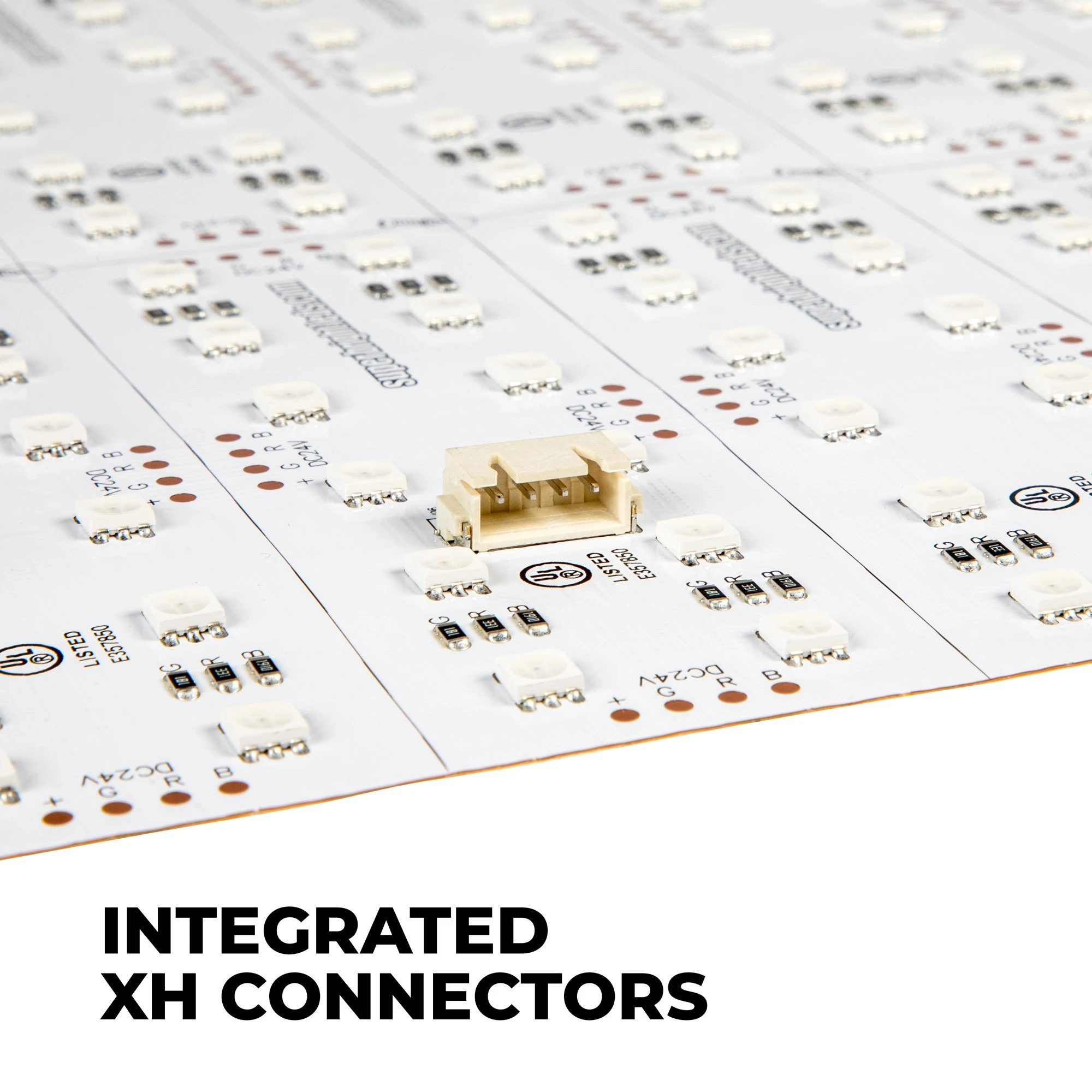

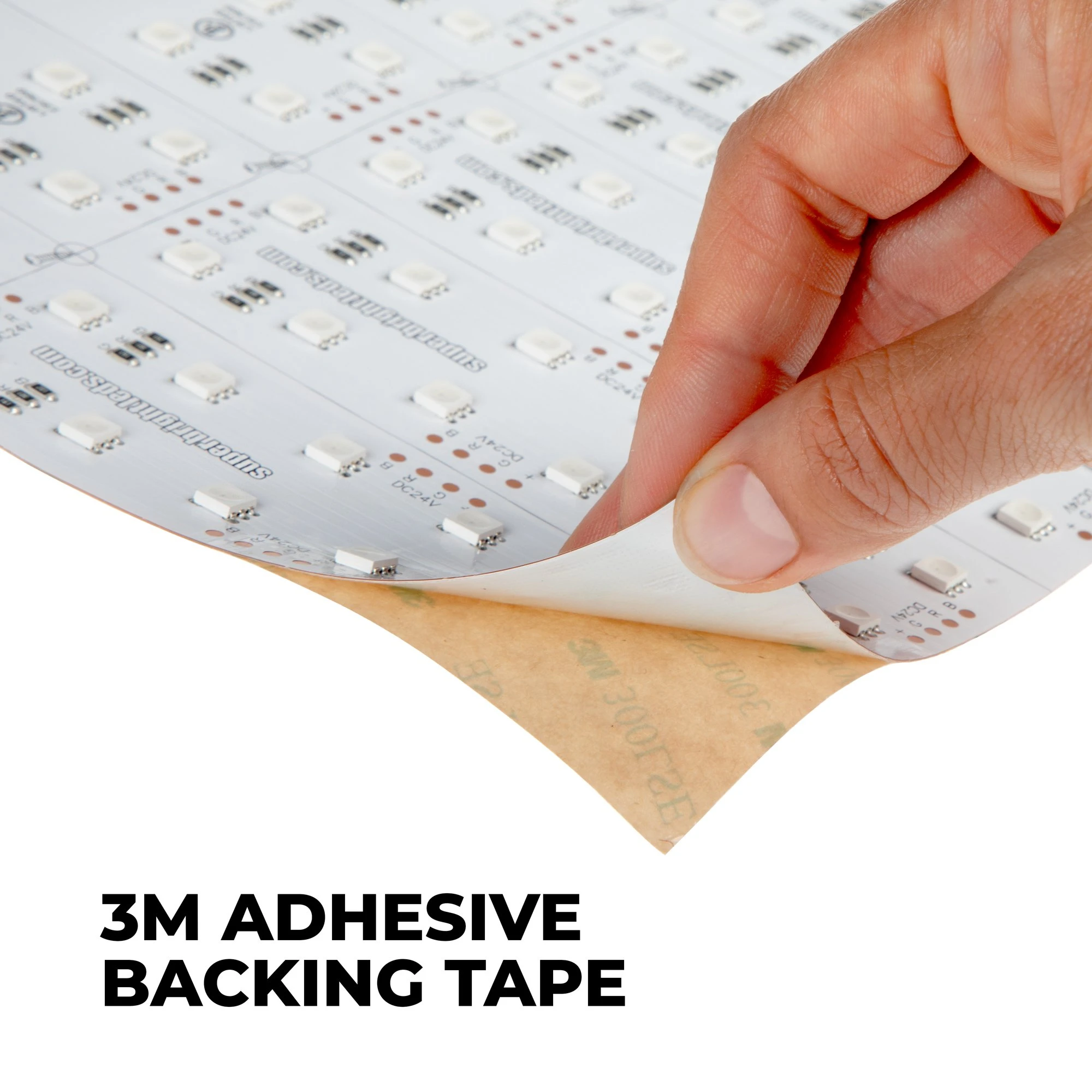

Wrap corners and trim to fit a unique shape with the RGB LED Light Sheet. The 18.9” x 9.5” sheet can be cut along the horizontal, vertical, or diagonal black lines of the 6 x 4 rows to customize the flexible sheet. Even in signs or backlighting with low clearance, the slim light sheet delivers powerful lighting, perfect for signage applications. On-board XH connectors eliminate soldering and simplify installation. To connect multiple light sheets, use the included 8cm interconnect cable. To install, use the 3M™ adhesive backing, or fasten it with screws at the indicated spots.
Product Details:
- Segment size: 4.72″ x 1.58″- 24 segments per sheet
- Max Run with Class 2 wiring: 1.5 sheets
- Includes one 0.5m pigtail connector and one 8cm interconnect
- Input connection: 4-pin XH connector
- PWM dimmable
- 24 VDC
- UL Listed
- 5-year warranty
| Ambient Operating Temperature | -20~+45 °C (-4~+113 °F) |
|---|---|
| LED Beam Angle | 120° |
| Rated Life (L70) | 50000 Hours |
| Power Consumption | 60 Watts |
| Output Connection Type | XH 4-Pin Connector |
| Operating Voltage | 24 VDC |
| Max Run (Class 2) | 1.5 Sheets |
| LEDs per Segment | 12 |
| LED Type | 5050 SMD |
| IP Rating | IP20 |
| Certifications/Compliance | UL Listed |
| Input Connection Type | XH 4-Pin Connector |
| Finish | White |
| Enclosed Fixture Rated | Yes |
| Dimmable | Yes |
| Dimensions | 18.9in x 9.5in |
| Current Draw | 2.5 A |
| Color/CCT | RGB |
| Segment Size | 4.72 in. x 9.5 in. (480 mm x 240 mm) |
