$87.49
- Versatile RGB+W LED Light Sheet: This 18.9” X 9.5” LED sheet features RGB+W color options and is compatible with 24V power supply. Ideal for creative lighting solutions in signs, trade show booths, and decorative applications.
- Customizable Color Temperatures: Choose from 3000K (warm white), 4000K (neutral white), or 5000K (cool white) to suit your lighting needs. Perfect for creating the right ambiance or highlighting displays.
- Durable & Flexible Design: With an IP20 rating, this LED light sheet is suitable for indoor use. Its flexible design allows for easy installation on curved or flat surfaces, making it a versatile choice for various projects.

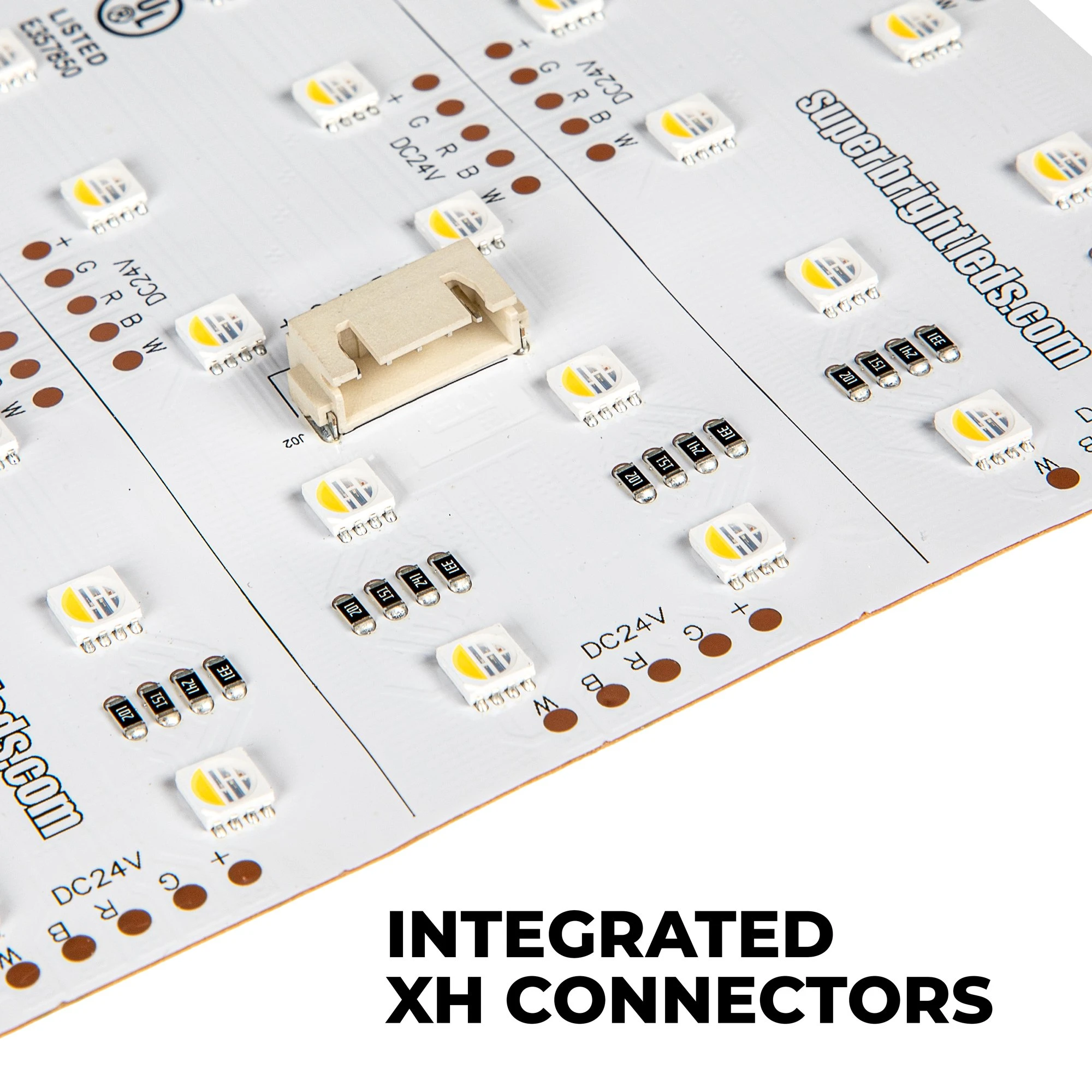

- Easy XH Pin Connection: The XH pin connector ensures a secure and hassle-free connection, simplifying installation and reducing setup time. Compatible with standard 24V LED drivers.
- Fast Shipping & Secure Payment: Enjoy reliable logistics with fast shipping options. We accept secure payment methods, including credit cards and PayPal, for a seamless shopping experience.
- No Compromise on Quality
- Where quality meets convenience.
- Free Shipping, No Compromise on Quality
- Your questions, our prompt answers.

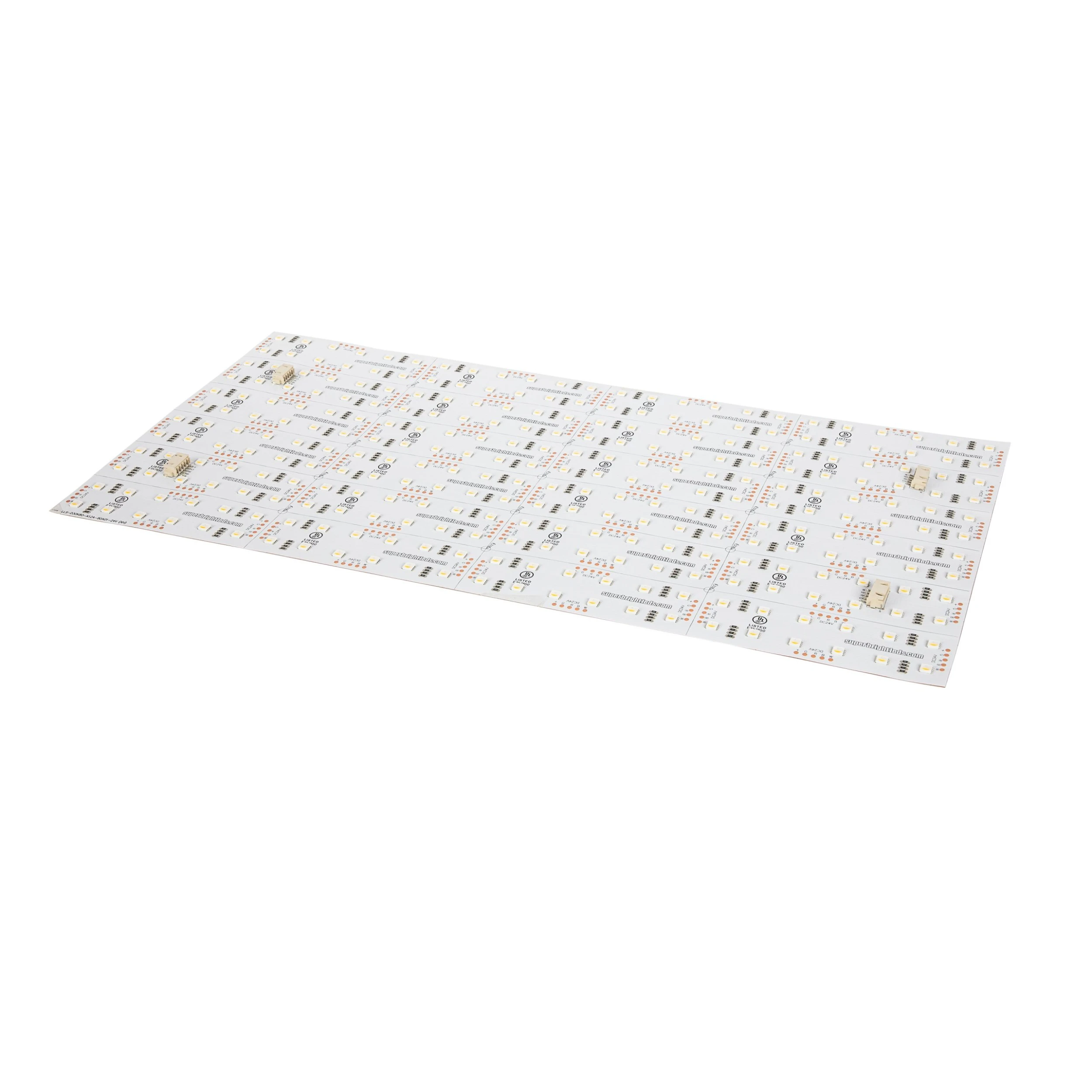

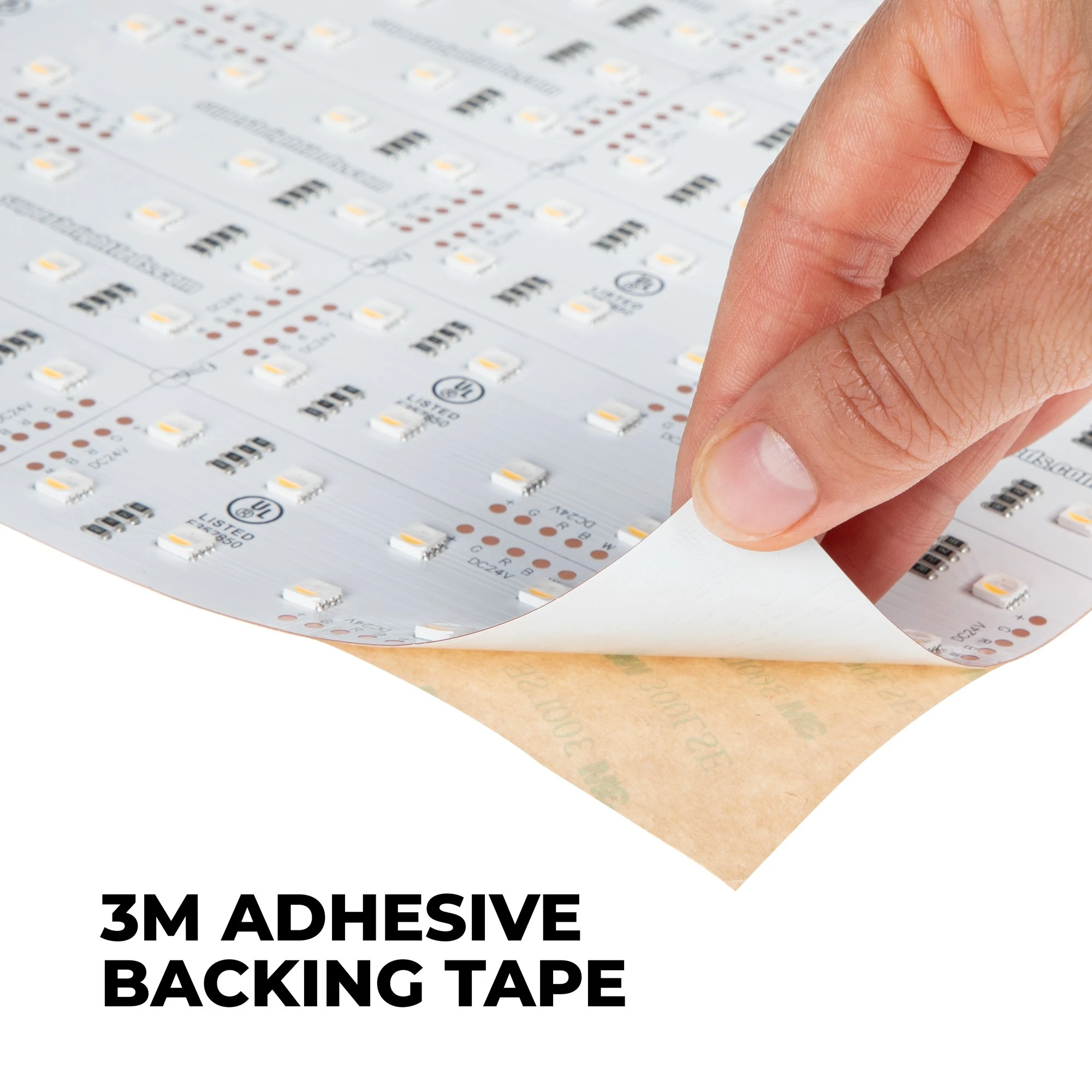

The RGB+W LED light sheet is fully customizable, color-changing, and adaptable for light boxes, logos, billboards, and more. The segments have cut lines along the board to shape the light sheet to the application, ideal for signs or backlighting. On-board XH connectors eliminate soldering and simplify installation. To connect multiple light sheets, use the included interconnect cable. To install, use the 3M™ adhesive backing, or fasten it with screws at the indicated spots.
Product Details:
- Segment size: 4.72″ x 1.57″- 24 segments per sheet
- Max Run with Class 2 wiring: 1 sheet
- Input connection: 5-pin XH connector
- Includes one 0.5m pigtail connector and one 8cm interconnect
- PWM dimmable
- 24 VDC
- UL Listed
- 5-year warranty
| Color Options | RGB+CW 5000K, RGB+NW 4000K, RGB+WW 3000K |
|---|---|
| LED Beam Angle | 120° |
| Rated Life (L70) | 50000 Hours |
| Power Consumption | 80 Watts |
| Output Connection Type | XH 5-Pin Connector |
| Operating Voltage | 24 VDC |
| Max Run (Class 2) | 1 Sheet |
| LEDs per Segment | 12 |
| LED Type | 5050 SMD |
| IP Rating | IP20 |
| Ambient Operating Temperature | -20~+45 °C (-4~+113 °F) |
| Input Connection Type | XH 5-Pin Connector |
| Finish | White |
| Enclosed Fixture Rated | Yes |
| Dimmable | Yes |
| Dimensions | 18.9in x 9.5in |
| Current Draw | 3.3 A |
| CRI | 80+ |
| Certifications/Compliance | UL Listed |
| Segment Size | 4.72 in. x 1.57 in. (120 mm x 40 mm) |
