$52.49

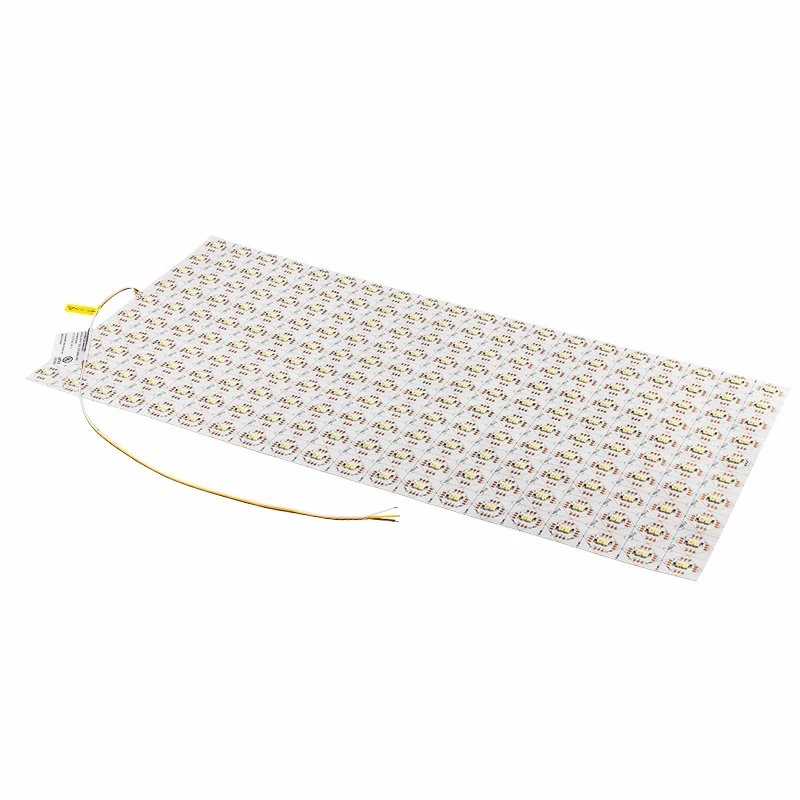

- Versatile Tunable White LED Back Lighting Sheet: This 18.9″ x 9.5″ flexible LED sheet offers adjustable color temperatures from warm 2700K to cool 6500K, perfect for creating the ideal ambiance for signs, trade show booths, or decorative lighting.
- High-Quality & Durable: Built with 24V power and an IP20 rating, this LED sheet ensures reliable performance and safety for indoor use. Its flexible design allows for easy installation on curved or flat surfaces.

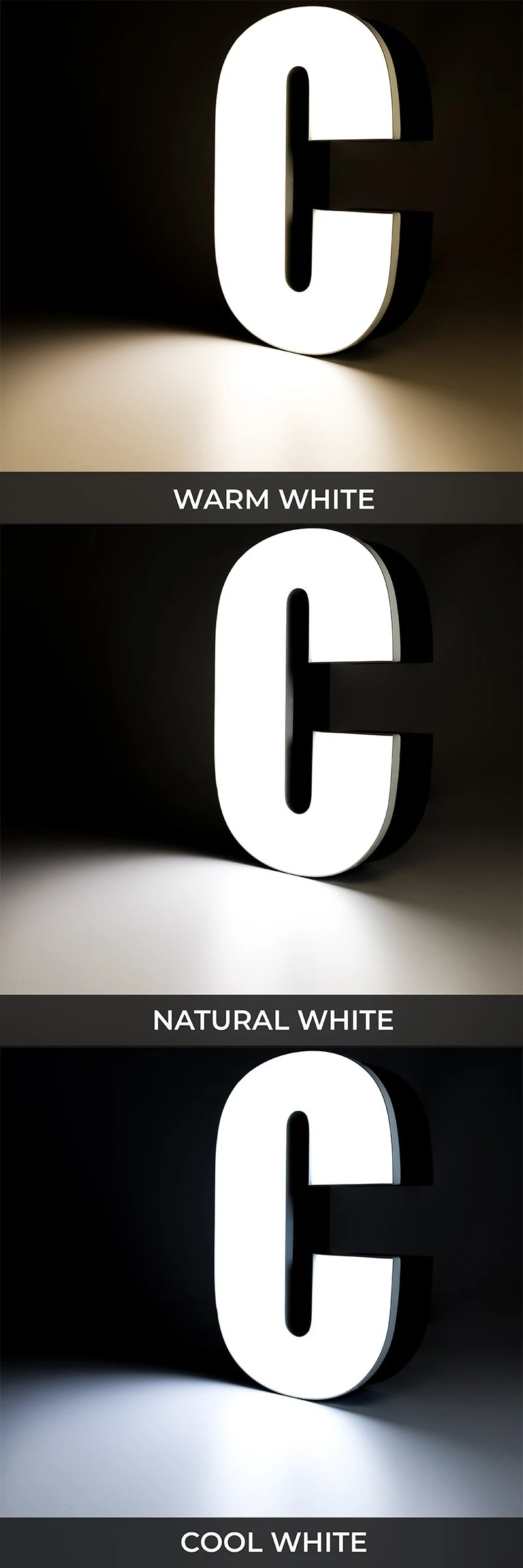

- Easy to Customize: The tunable white feature lets you adjust the light color to match your branding or mood, making it ideal for retail displays, exhibitions, or creative lighting projects.
- Fast Shipping & Secure Payment: Enjoy hassle-free shopping with our secure payment options and fast, reliable shipping. Your order will be processed quickly and delivered to your doorstep.
- Customer Support & Warranty: We stand by the quality of our products. If you have any questions or concerns, our dedicated customer support team is here to help. Your satisfaction is our priority.
- No Compromise on Quality
- Where quality meets convenience.
- Free Shipping, No Compromise on Quality
- Your questions, our prompt answers.

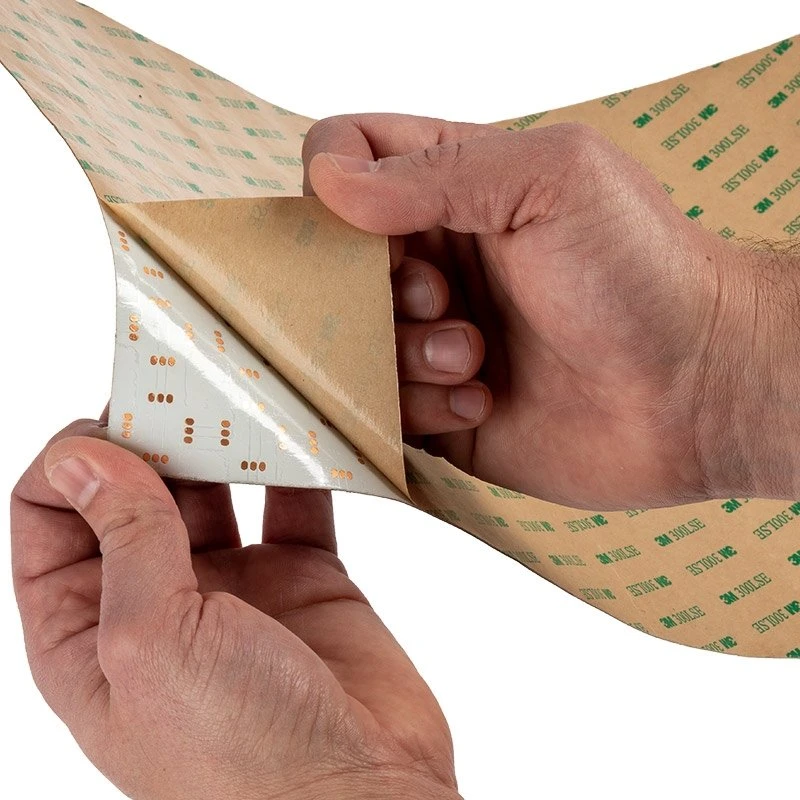

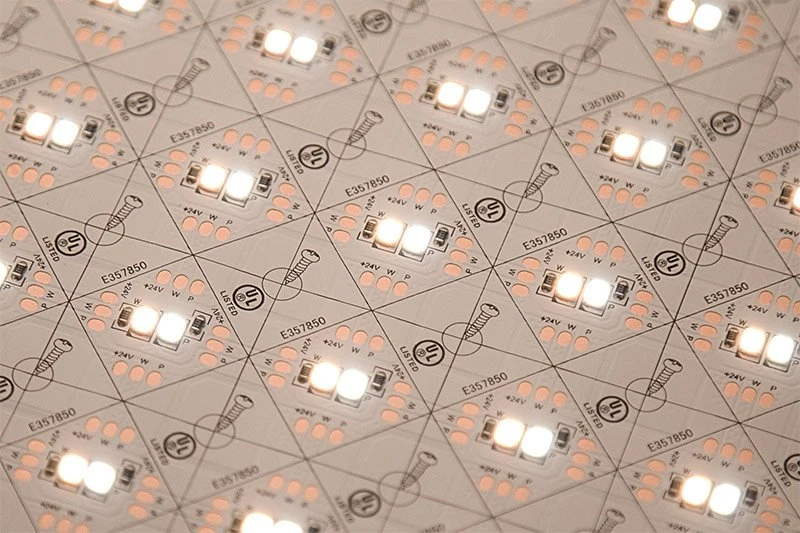

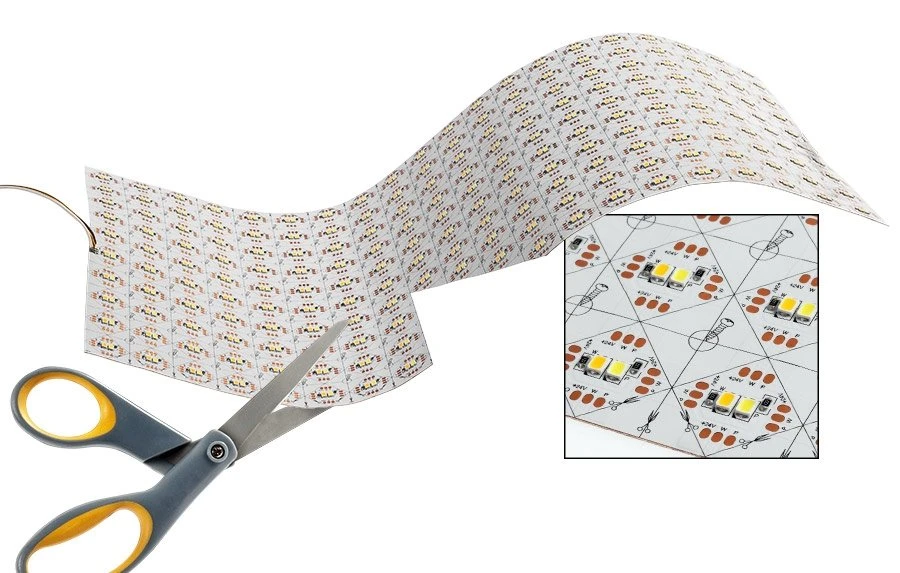

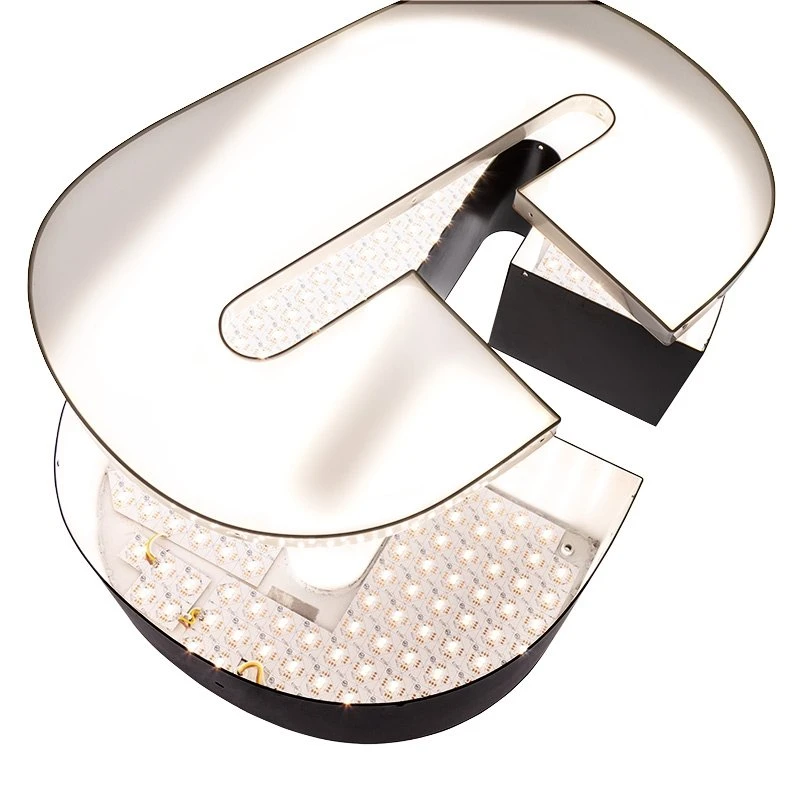

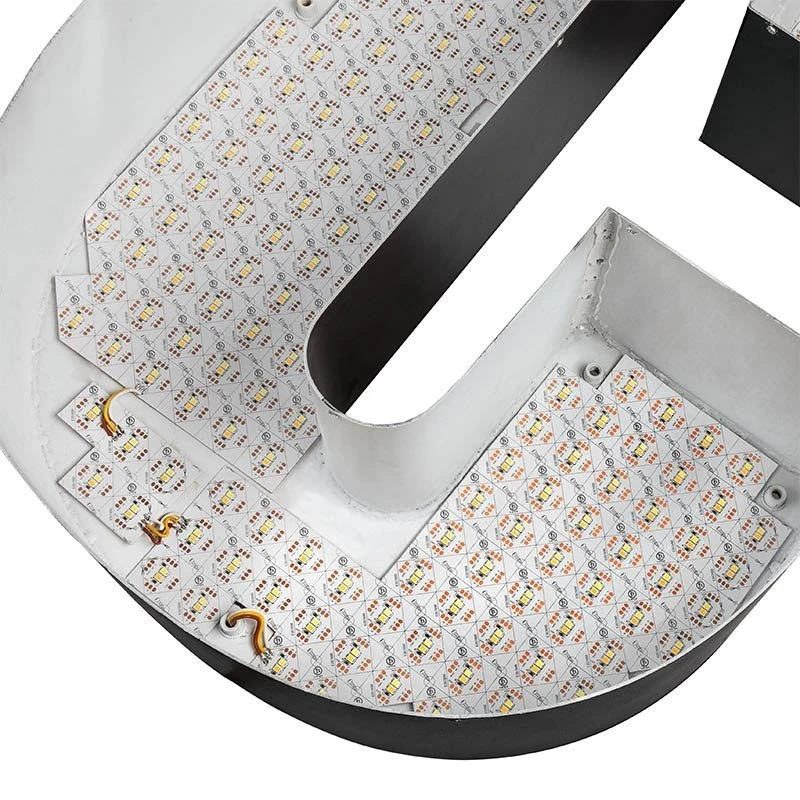

Wrap corners and trim to fit a unique shape with LLS series LED Light Sheet. Cut along the horizontal, vertical, or diagonal black lines of the 20 x 10 rows to customize the flexible sheet. Even in signs or backlighting with low clearance, the high density of LED chips ensures even light distribution. Peel off the 3M™ adhesive backing, or fasten it with screws at the indicated spots to apply this light sheet. It can be tuned to emit the exact temperature of white needed for changing occasions.

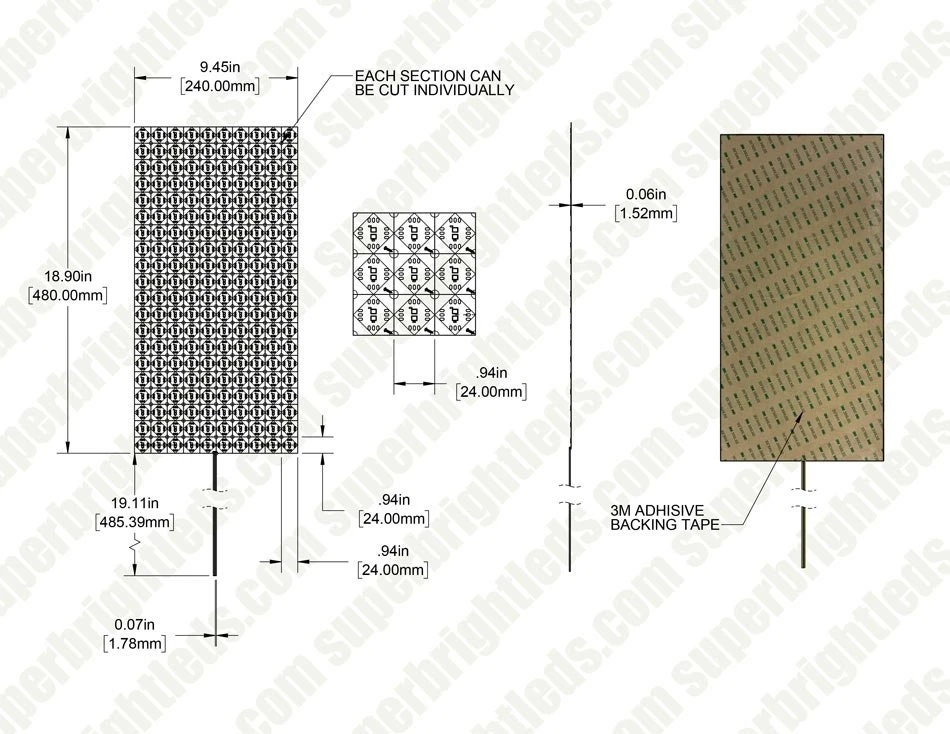

Please refer to the specification sheet for cutting recommendations. Using only the pre-marked lines when cutting the sheet is essential to maintaining electrical contact.
Product Details:
- Dimmable
- Max Run with Class 2 wiring: 1.5 sheets
- Dimensions: 18.9″ x 9.5″
- Enclosed fixture rated 36 mm
- IP20 rated for dry conditions
- 50000 hours L70 lifespan
- 24 VDC
- UL Listed
- 5-year warranty
| Ambient Operating Temperature | -20~+45 °C (-4~+113 °F) |
|---|---|
| Input Connection Type | Pigtail |
| Rated Life (L70) | 50000 Hours |
| Power Consumption | 60 Watts |
| Operating Voltage | 24 VDC |
| Max Run (Class 2) | 1.5 Sheets |
| LEDs per Segment | 2 |
| LED Type | 2835 SMD |
| LED Beam Angle | 120° |
| IP Rating | IP20 |
| Finish | White |
| CCT Value | 2700-6500K |
| Environmental Rating | Non-weatherproof |
| Enclosed Fixture Rated | Yes |
| Efficacy | 92 lm/W |
| Dimmable | Yes |
| Dimensions | 18.9in x 9.5in |
| Current Draw | 2.5 A |
| Color/CCT | Tunable White |
| CRI | 80+ |
| Certifications/Compliance | CE, UL Listed |
| Segment Size | 0.95 in. x 0.95 in. (24 mm x 24 mm) |
Be the first to review “Tunable White LED Back Lighting Sheet – 18.9″ x 9.5″ – 24V – IP20 – Adjustable 2700K-6500K for Signs & Trade Shows”
